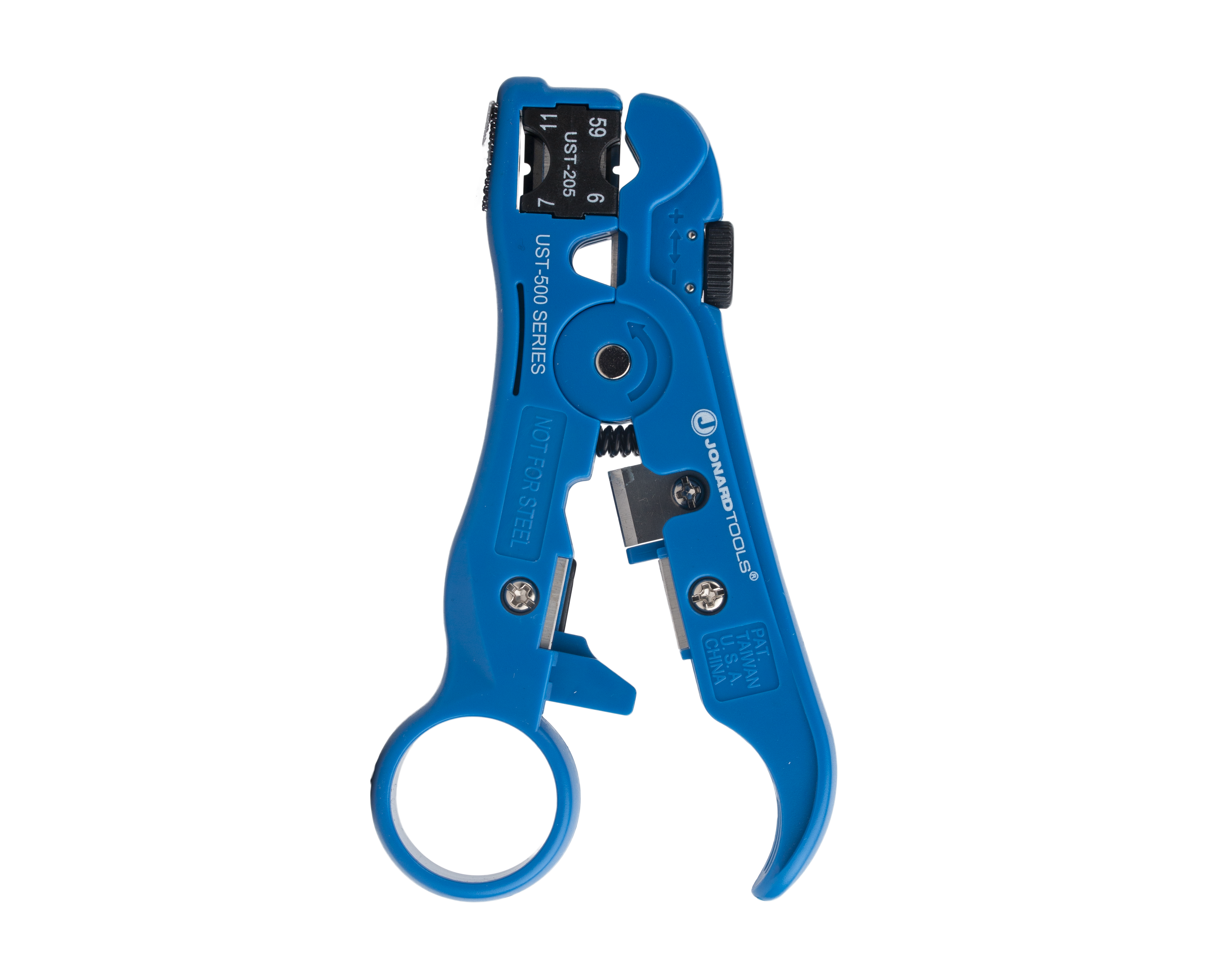

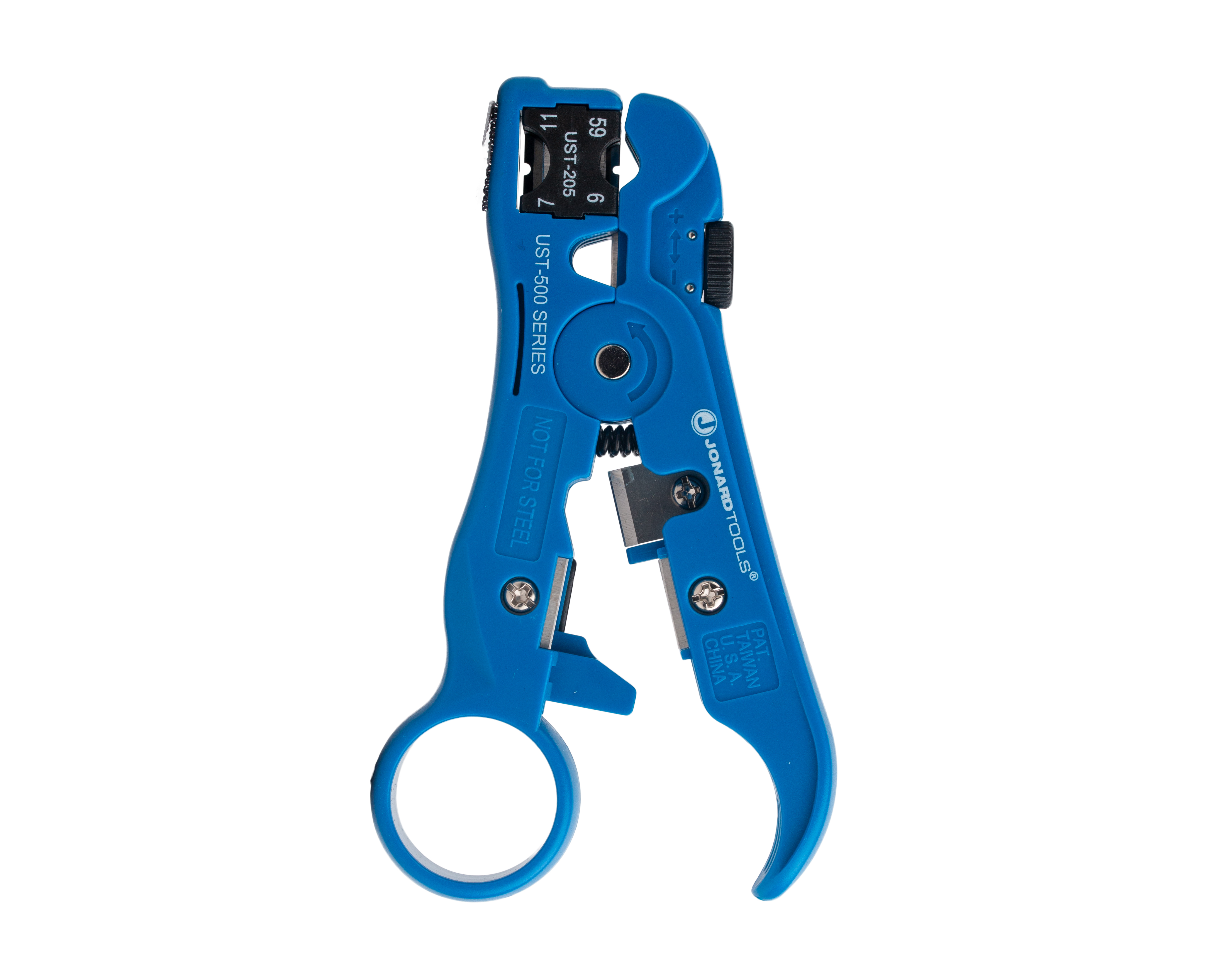

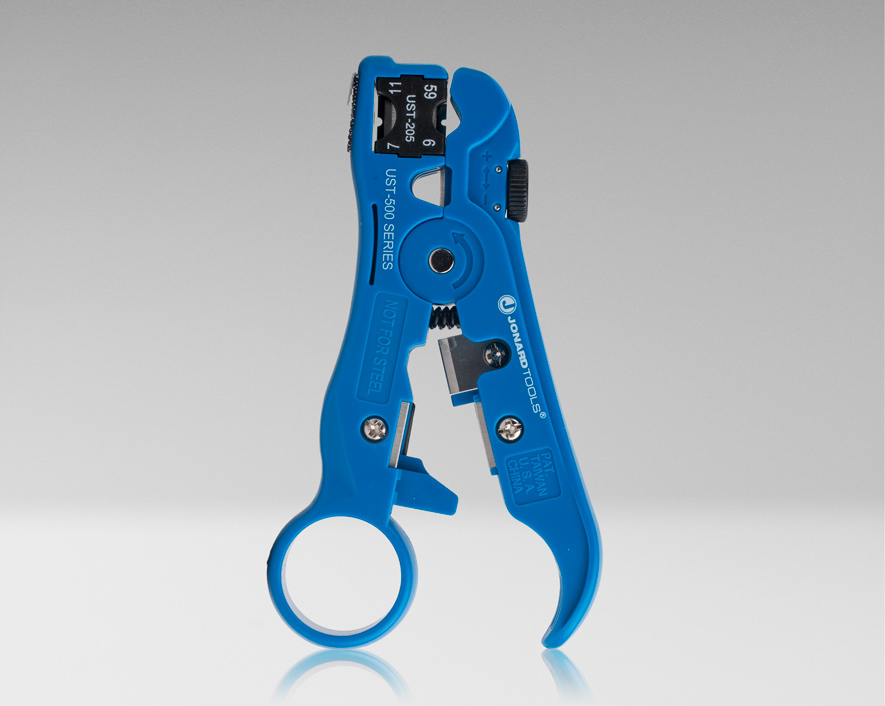

Universal Cable Stripping Tool for COAX, Network, and Telephone Cables
UST-500 Copy ID to clipboard
Cable Type
Cable Type: RG59, RG6, RG7, RG11 No Stop
PRODUCT FEATURES
The Jonard Tools UST-500 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. Strips CAT3 through CAT 8 network cables. Includes a built-in cutter, a separate slot for flat 4P/6P telephone cable, a hook-and-loop shield-fold strip, and a large finger loop for smooth rotation. Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric in one pass. Backed by Jonard's Lifetime Warranty. This universal stripping tool features the following:
- Adjustable stripping hole strips CAT3 through CAT 8 PVC and Plenum network cables
- Included blade cartridge (UST-205) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
- High carbon steel blades last over 5,000 strips on each side
- Cartridge is reversible for ambidextrous use
-
Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric in one pass
- Cutter is included to cut all types of cables
- Separate stripping slot included for stripping flat telephone 4P/6P style cable
- Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
Specifications
| Cable Type | COAX, Network, Flat Telephone Cable, CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT7A, CAT 8 |
|---|---|
| Cable Size | RG-59/6/7/11 COAX, Network up to 1 cm (0.39"), Flat Cable up to 1 cm wide |
| Strip Length | Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Wire Gauge | 22 AWG to 26 AWG (23 AWG solid, 26 AWG stranded) |
| Dimensions | 4 in x 2 in x 0 in (10.16 cm x 5.08 cm x 0 cm) |
| Weight | 0.14 lb (63.56 g) |
| UPC # | 811490012233 |
Used In
Used in
- TK-170 Fiber Prep Kit with Small & Large Mid Span Slitters
- TK-21 Network Installation Service Tool Kit
- TK-450M CATV/Telecom Installers Kit
- TK-611 16 Piece Security & Alarm Tool Kit+
- TK-611B 16 Piece Backpack Security & Alarm Tool Kit+
- TK-DC04 Data Center Cat 8 Term. & Prep Kit
- TK-DC06 Data Center Master Low Voltage & Network Tech Kit
