CMP-3 Copy ID to clipboard

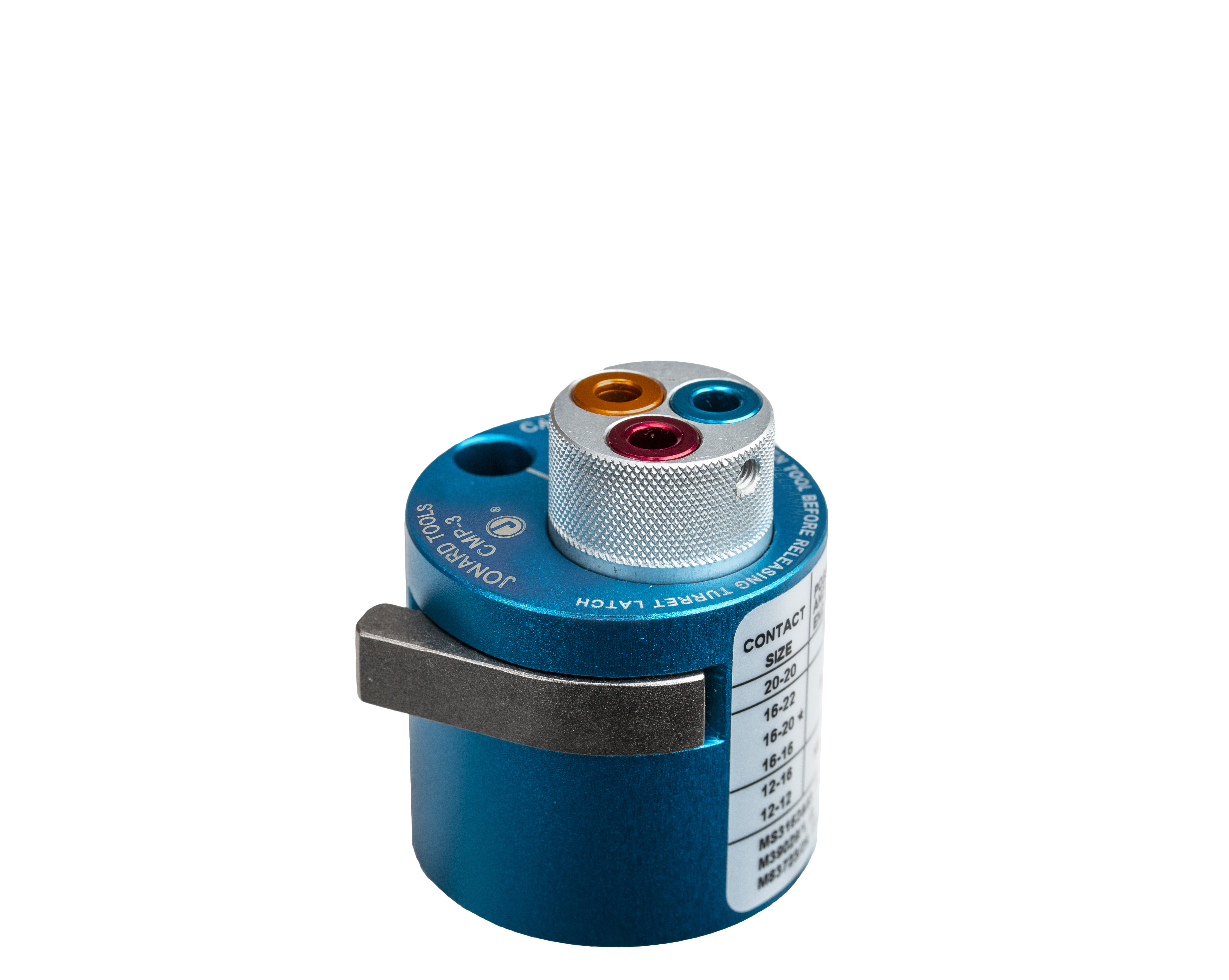

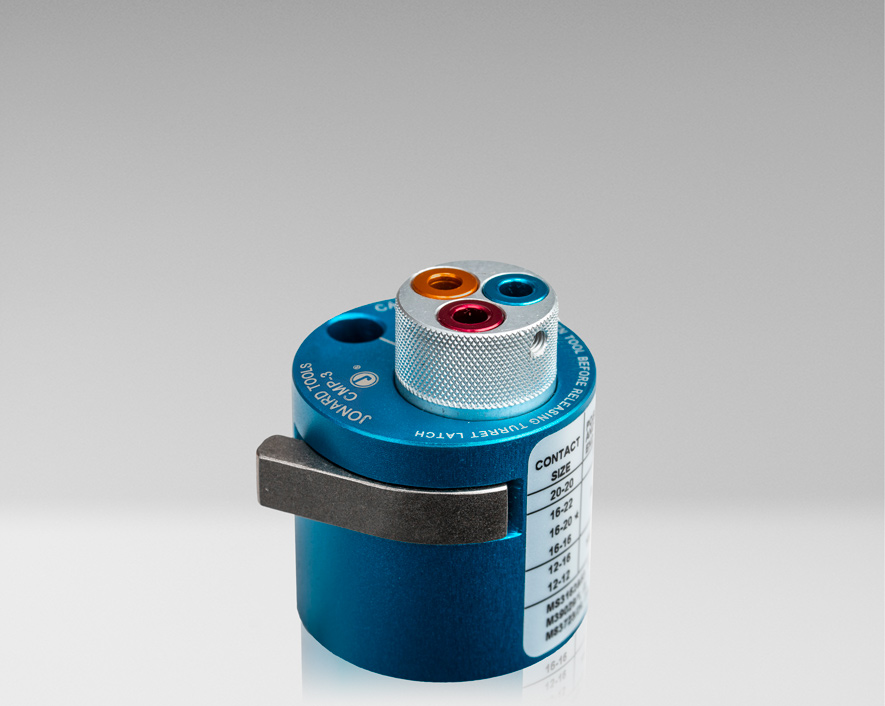

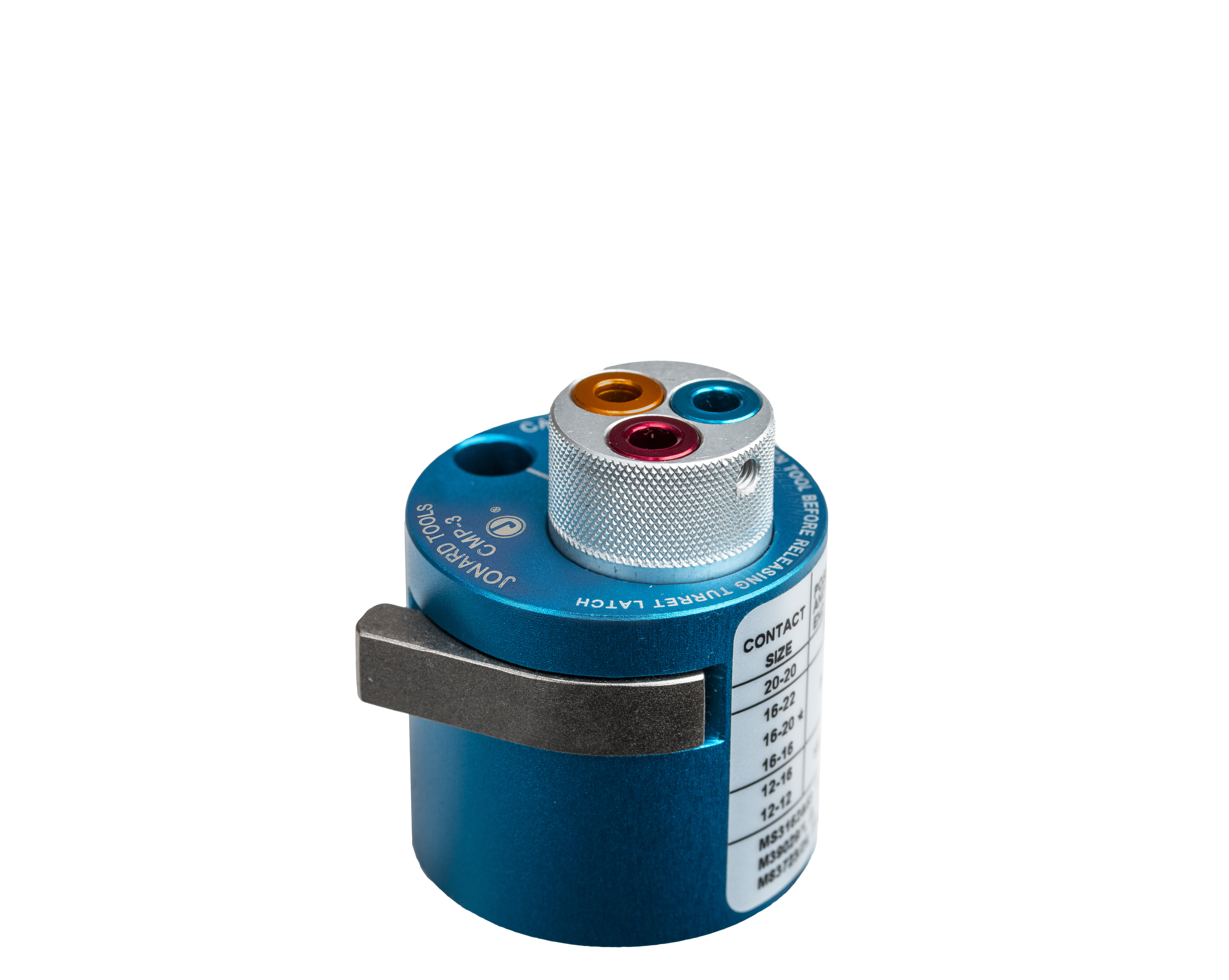

Turret Head for Precision Crimper

PRODUCT FEATURES

Designed for use with our CMP-1226 Precision Crimper (and other crimpers), this turret head is perfect for crimping 12, 16, and 20 front release connector contact pins onto 12-26 AWG wire. This turret head features the following:

  • Compatible with most crimpers, including our CMP-1226
  • Color-coded turret makes it easy to select the correct contact size quickly and easily
  • Easy-to-read chart affixed to the side of the turret head conveniently lists corresponding contact and wire size as well as the recommended crimp depth
  • Rugged steel frame construction for maximum durability
Learn more about product features Show less

Specifications

Contact Size

12 (0.093"), 16 (0.063"), 20 (0.040")

Wire Gauge

12 - 26 AWG (2.05 - 0.404 mm)

Dimensions

1.88" x 1.50" x 1.50" (47.6 mm x 38.1 mm x 38.1 mm)

Weight 0.25 lb (114.408 g)
UPC # 811490017962
Contact Size

12 (0.093"), 16 (0.063"), 20 (0.040")

Wire Gauge

12 - 26 AWG (2.05 - 0.404 mm)

Dimensions

1.88" x 1.50" x 1.50" (47.6 mm x 38.1 mm x 38.1 mm)

Weight 0.25 lb (114.408 g)
UPC # 811490017962
