CSR-125 Copy ID to clipboard

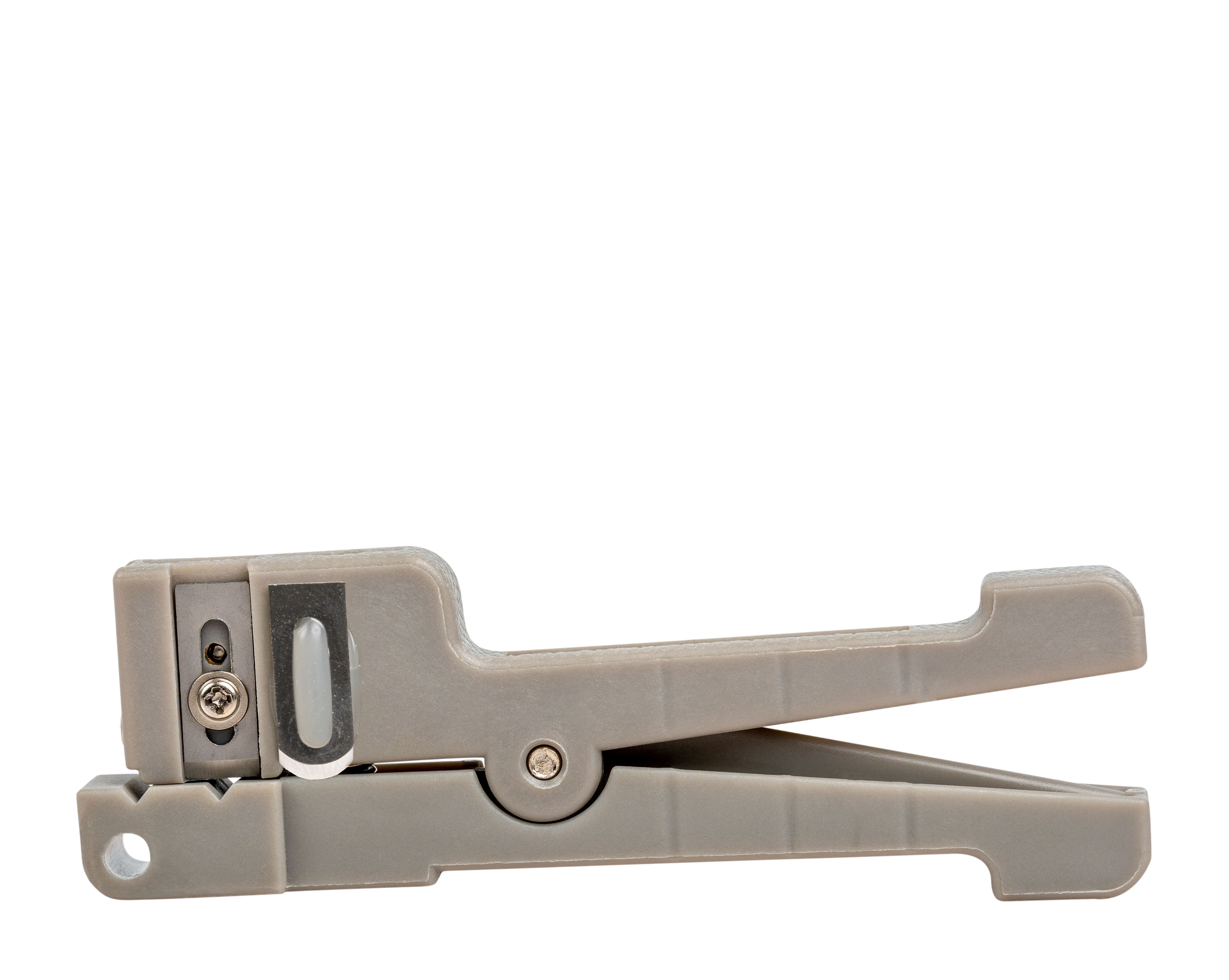

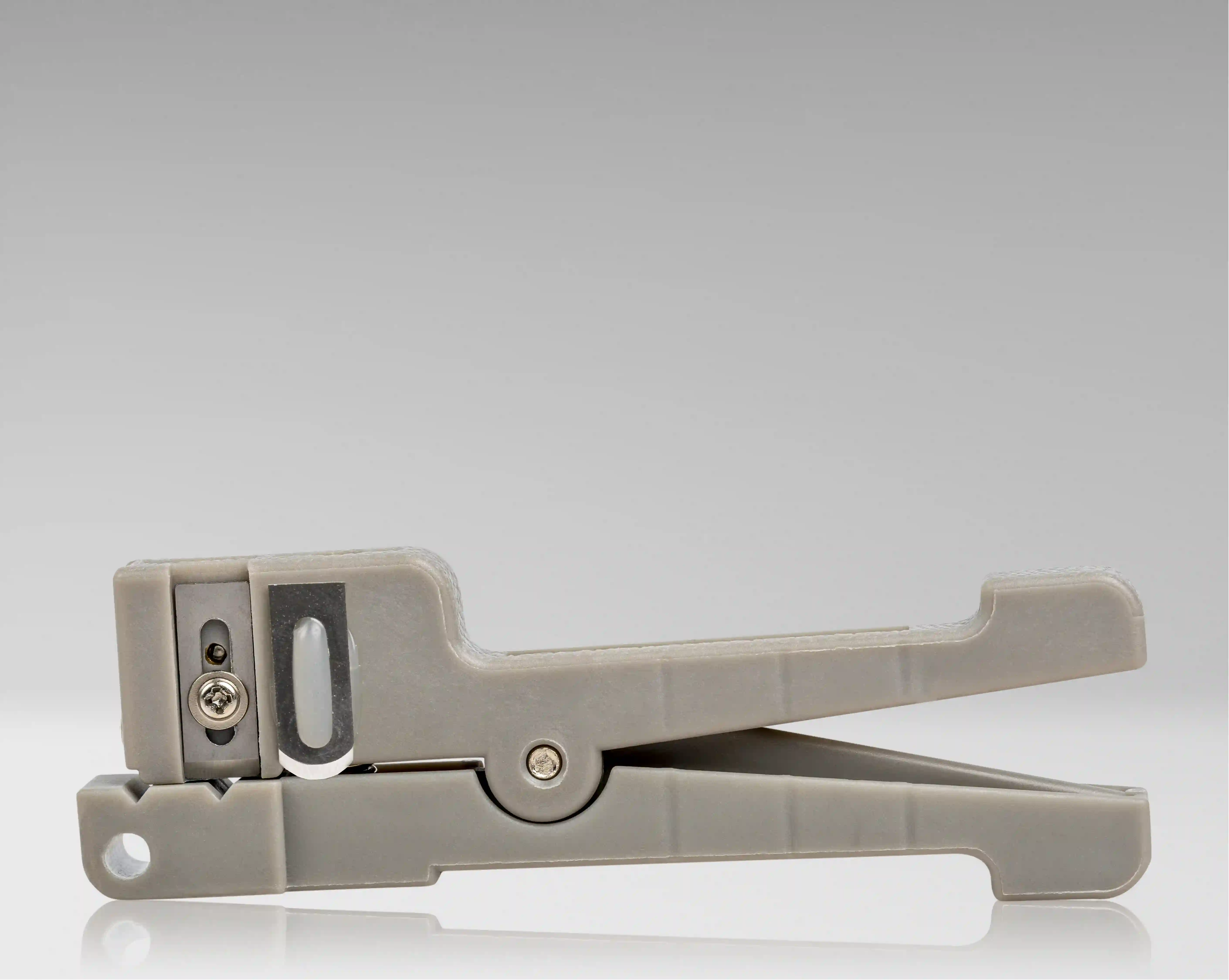

Compact Cable Slit & Ring Tool, (0 - 0.125")
PRODUCT FEATURES
Designed to slit and ring fiber optic cables from 0 to 0.125" (0 - 3.3 mm) in diameter, this cable slit and ring tool is perfect for slitting and ringing cables, buffer tubes, and jackets on fiber optic cables. This cable slit and ring tool features the following:
- Blade depth is easily adjustable, up to 0.125" (3.3 mm)
- Spring-loaded handles for easy operation
- Can be used to slit and ring RG-174 & RG-187 cable as well as fiber, coaxial, and electrical cable of similar size
- Includes two cutting blades and one rounded blade for slitting without damaging the inner conductors
Maximum Cable Diameter
Maximum Cable Diameter: 0.125" (3.3 mm)
Specifications
| Cut Type | Ring, Slit |
|---|---|
| Cable Type | Jacket |
| Cable Diameter | 0 - 0.125" (0 - 3.3 mm) |
| Product Main Color | Grey |
| Weight | 0.04 lb (19.068 g) |
| UPC # | 810053351857 |
