CM-100 Copy ID to clipboard

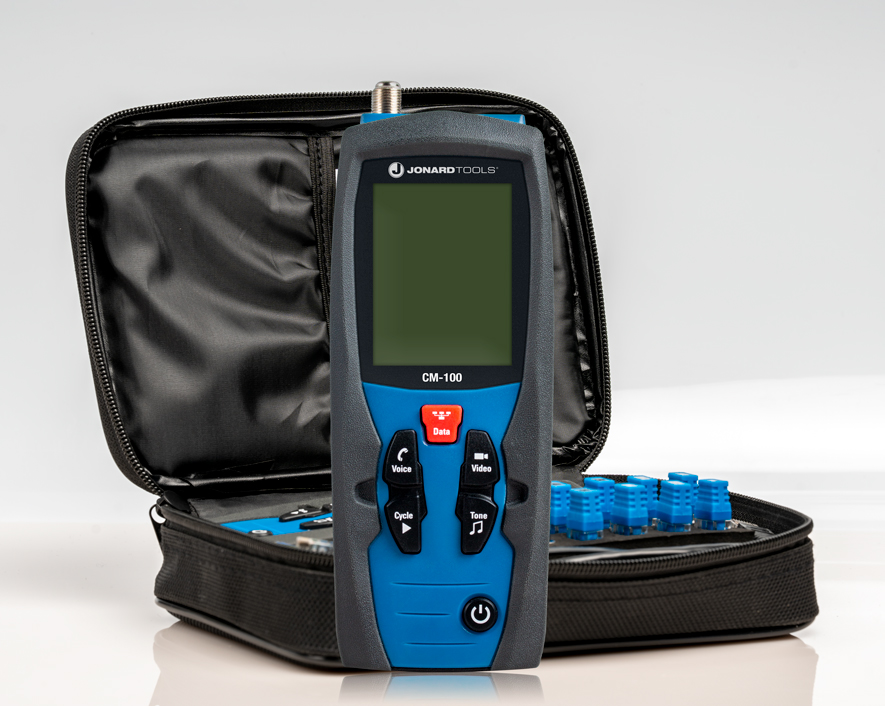

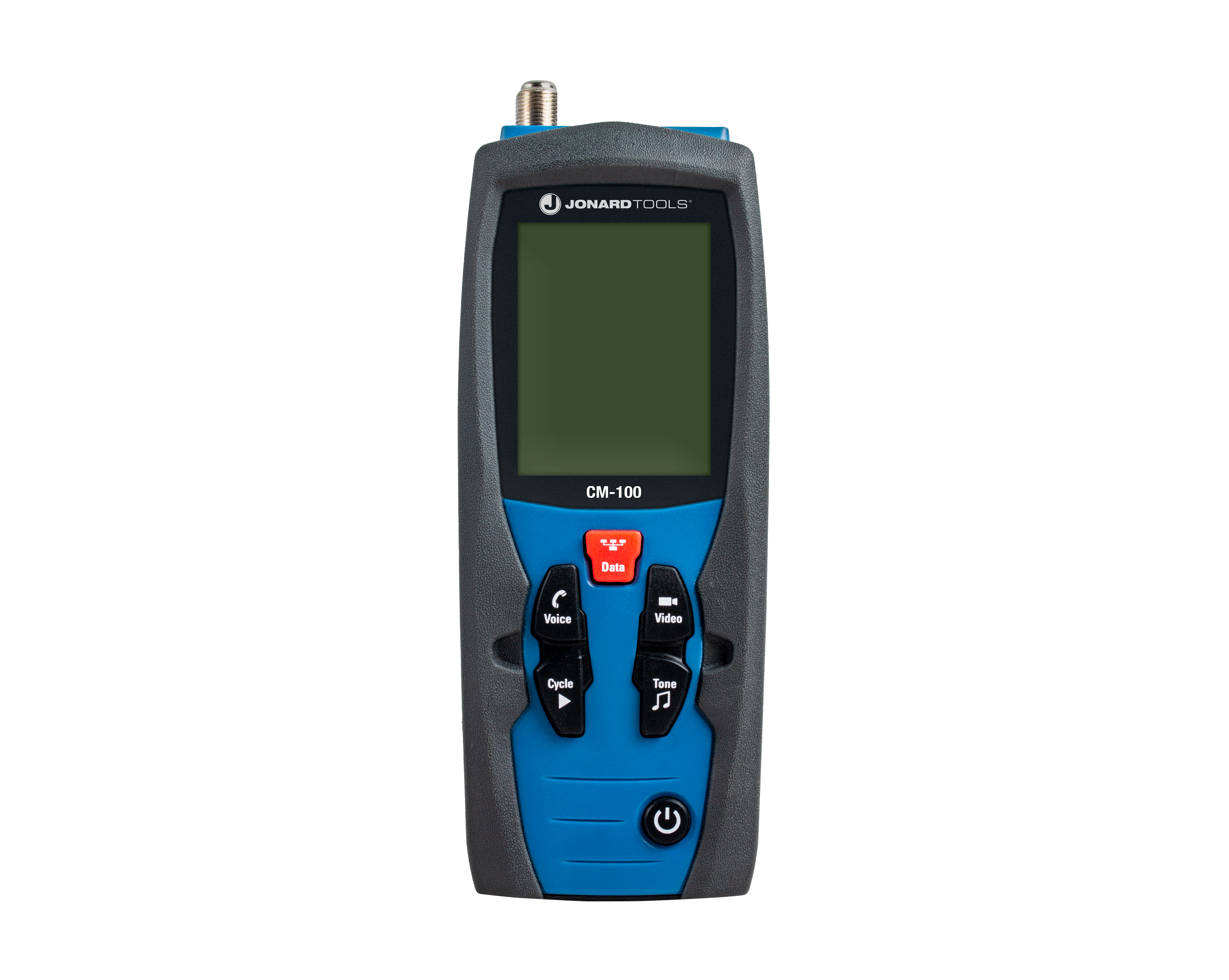

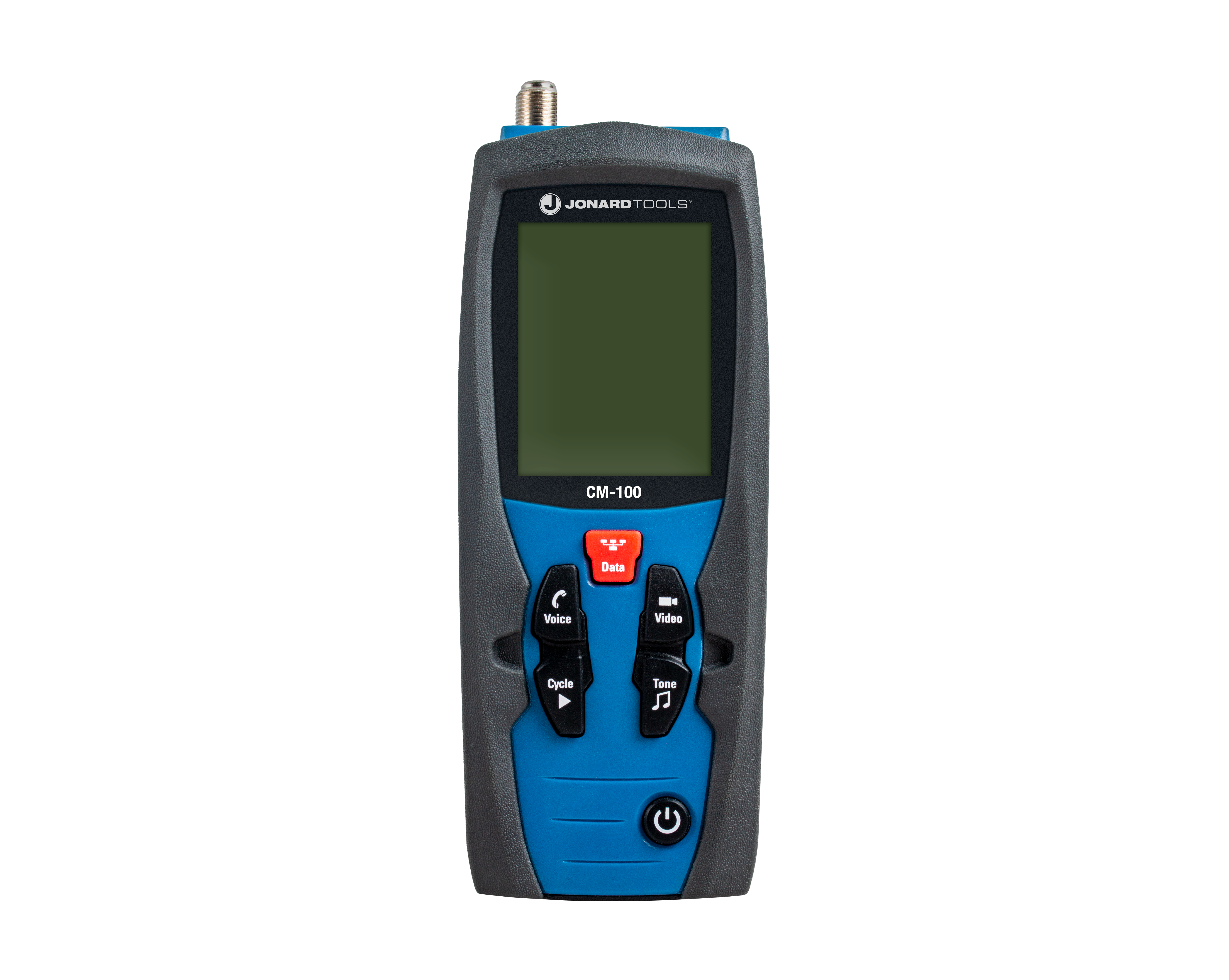

Jonard Tools ® Cable Mapper Pro
PRODUCT FEATURES
Jonard Tools® Cable Mapper Pro is designed for finding and identifying issues with Coax and Networking Cables. The Cable mapper pro is the perfect tool for use on CATV Cables, Network and Satellite installations, Security and Alarm Installations, Telephone systems, Audio/Video Equipment, Coax Cables and CCTV.
- Live Voltage Detection and Continuity Tests
- Maps up to 8 Coax or Network Cables simultaneously (Up to a 1,000 FT)
- The Included Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels
- Tests Coax for opens and shorts
- Tests Network and Telephone Cables for opens, shorts, splits, reversed and crossed pairs
- Protective Rubber Housing
- Requires 2 “AA” Batteries (Included) and automatically powers off after 30 minutes to conserve battery life.
Specifications
| Includes | Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet |
|---|---|
| Display | Backlit LCD |
| Max Cable Length | 1000 ft (304.8 m) |
| Max DC Cable Resistance | 100 Ohms |
| Batteries | x2 AA |
| Dimensions | 4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm) |
| Weight | 0.93 lb (422.22 g) |
| UPC # | 810053350874 |
