JIC-63020 Copy ID to clipboard

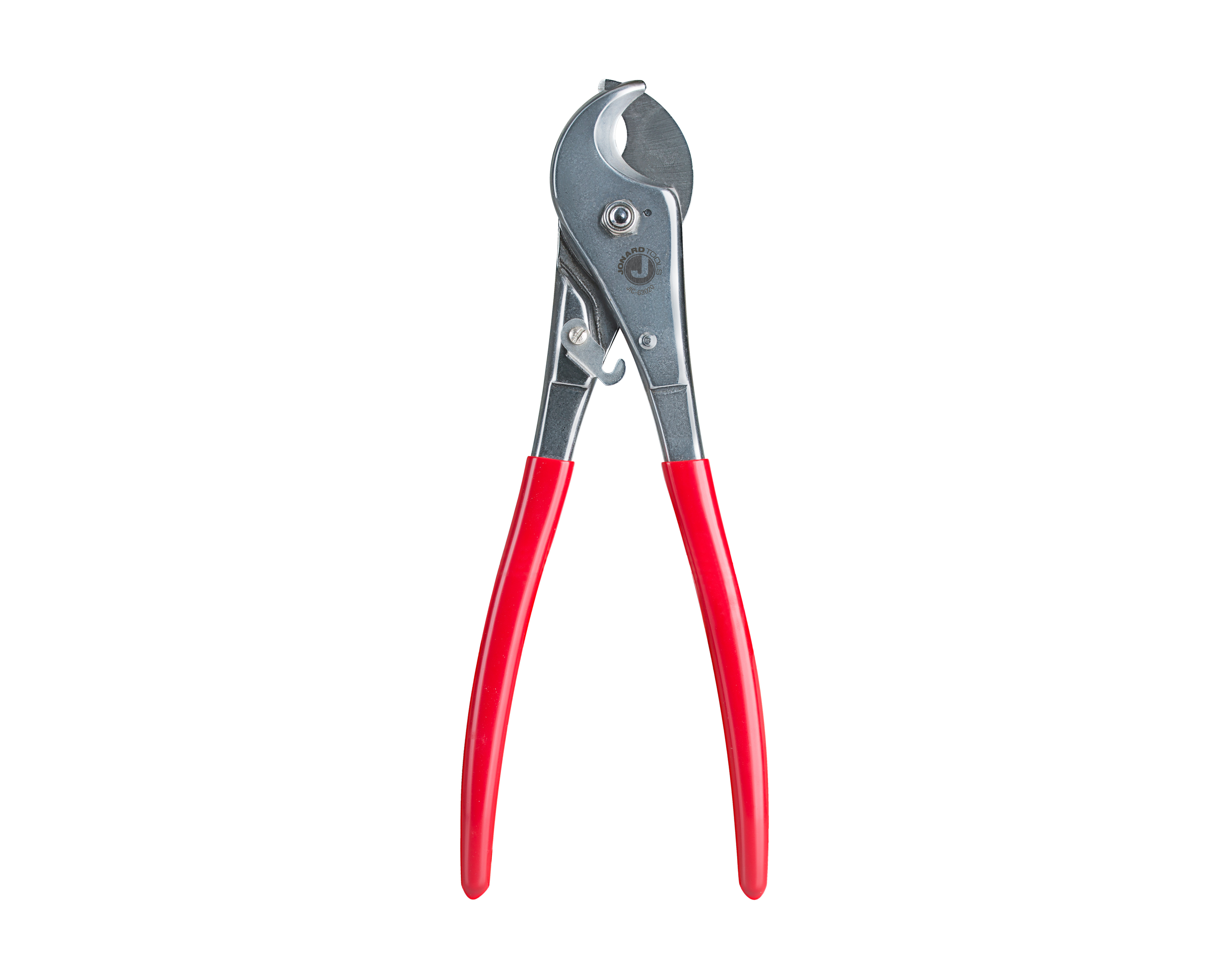

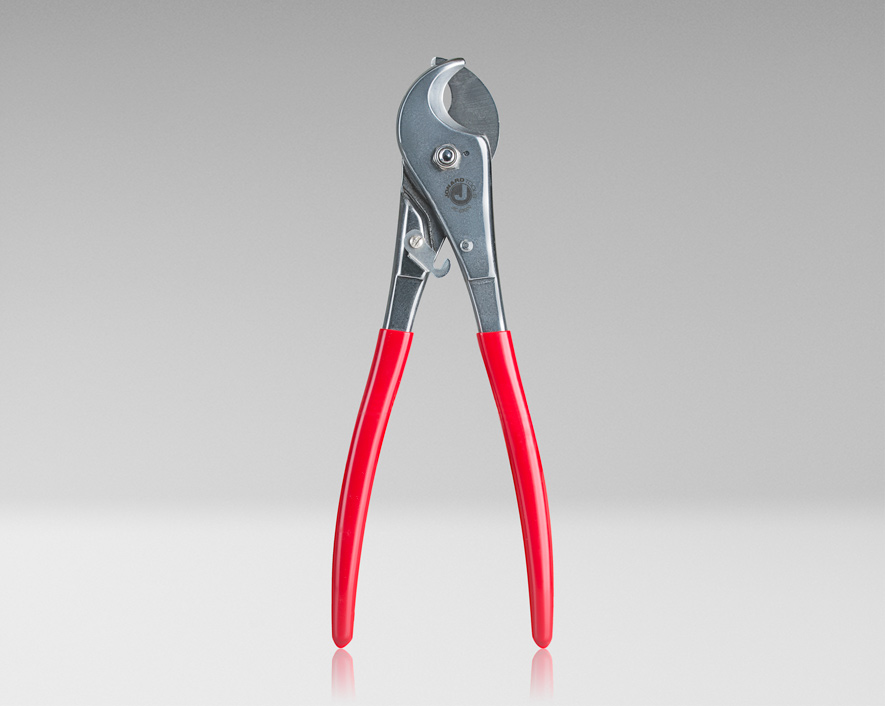

9" Curved Jaw Cable Cutter
PRODUCT FEATURES
Jonard’s cable cutters are made of chrome vanadium steel with induction-hardened cutting edges for maximum strength and durability. These cable cutters feature the following:
- Curved jaw to provide superior holding for a cleaner and more concentric cut
- Shear-type jaw for easily cutting through up to 100-pair 24 AWG cable
- Unique locking mechanism allows simple unlocking of handles by pressing them together
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
- This product is not for use on steel or ACSR type cable
- Jaws open up to 7/8” (22.22 mm), perfect for 2/0 Copper, 4/0 Aluminum, and 100-pair (24 AWG) Cable
- Lifetime Warranty
Specifications
| Conductor Material | Aluminum, Copper |
|---|---|
| Maximum Cable Diameter | 2/0 Copper, 4/0 Aluminum, 100-pair Cable (24 AWG) |
| Overall Length | 9" (228.6 mm) |
| Jaw Length | 1" (25.4 mm) |
| Jaw Thickness | 7/16" (11.11 mm) |
| Jaw Width | 7/8" (22 mm) |
| Product Material | Chrome Vanadium Steel |
| Weight | 0.86 lb (388.624 g) |
| UPC # | 811490018983 |
