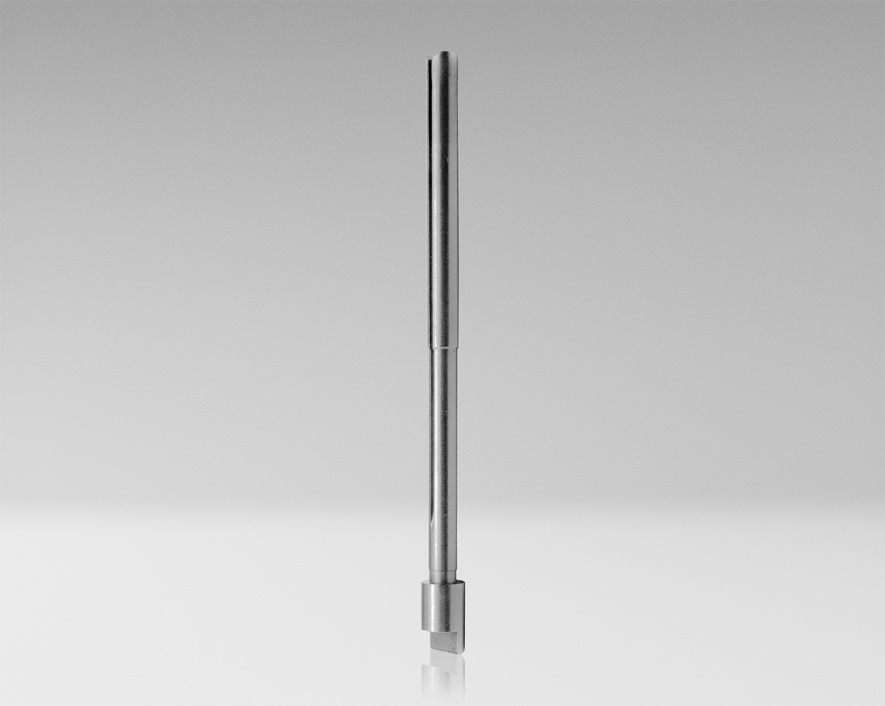

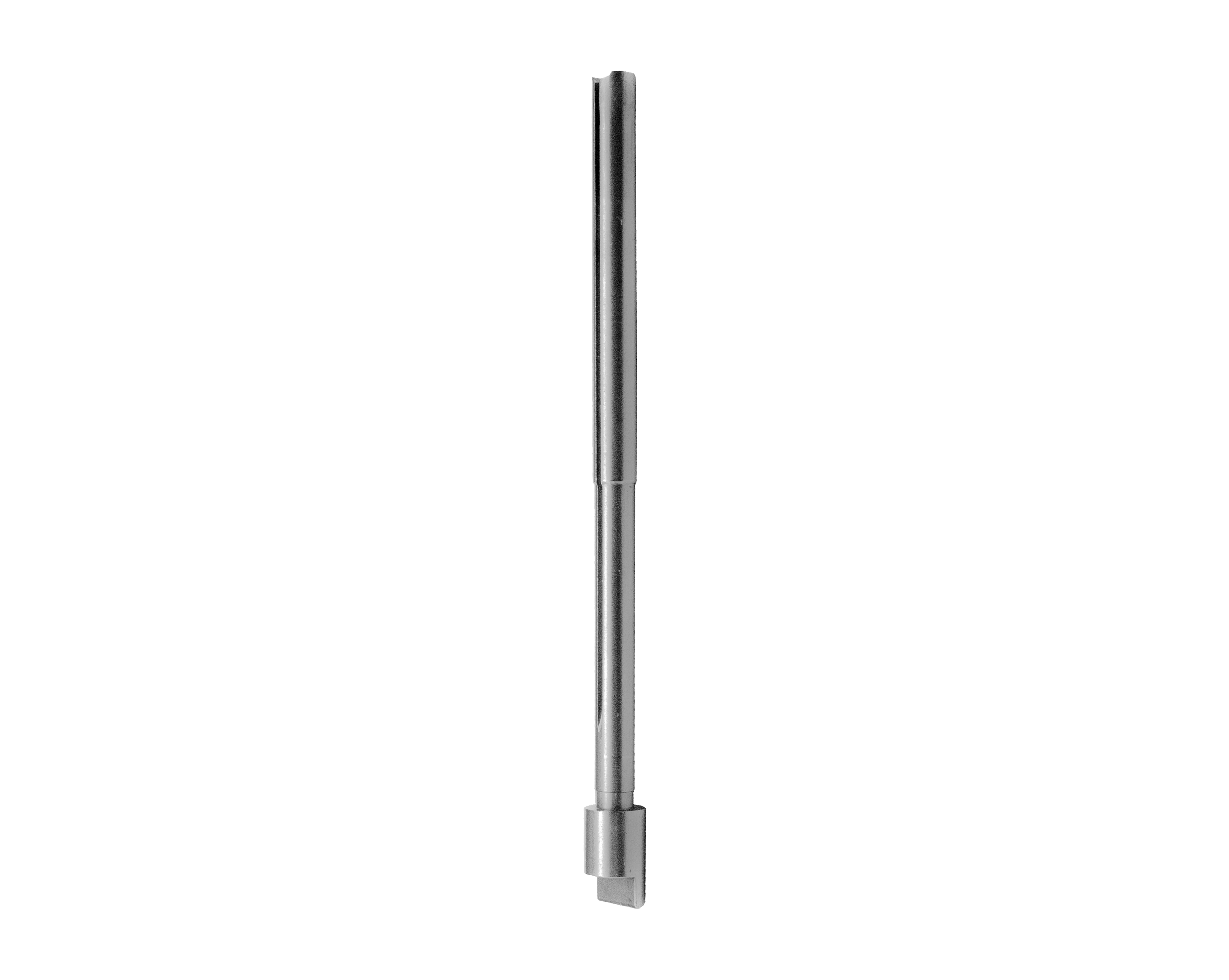

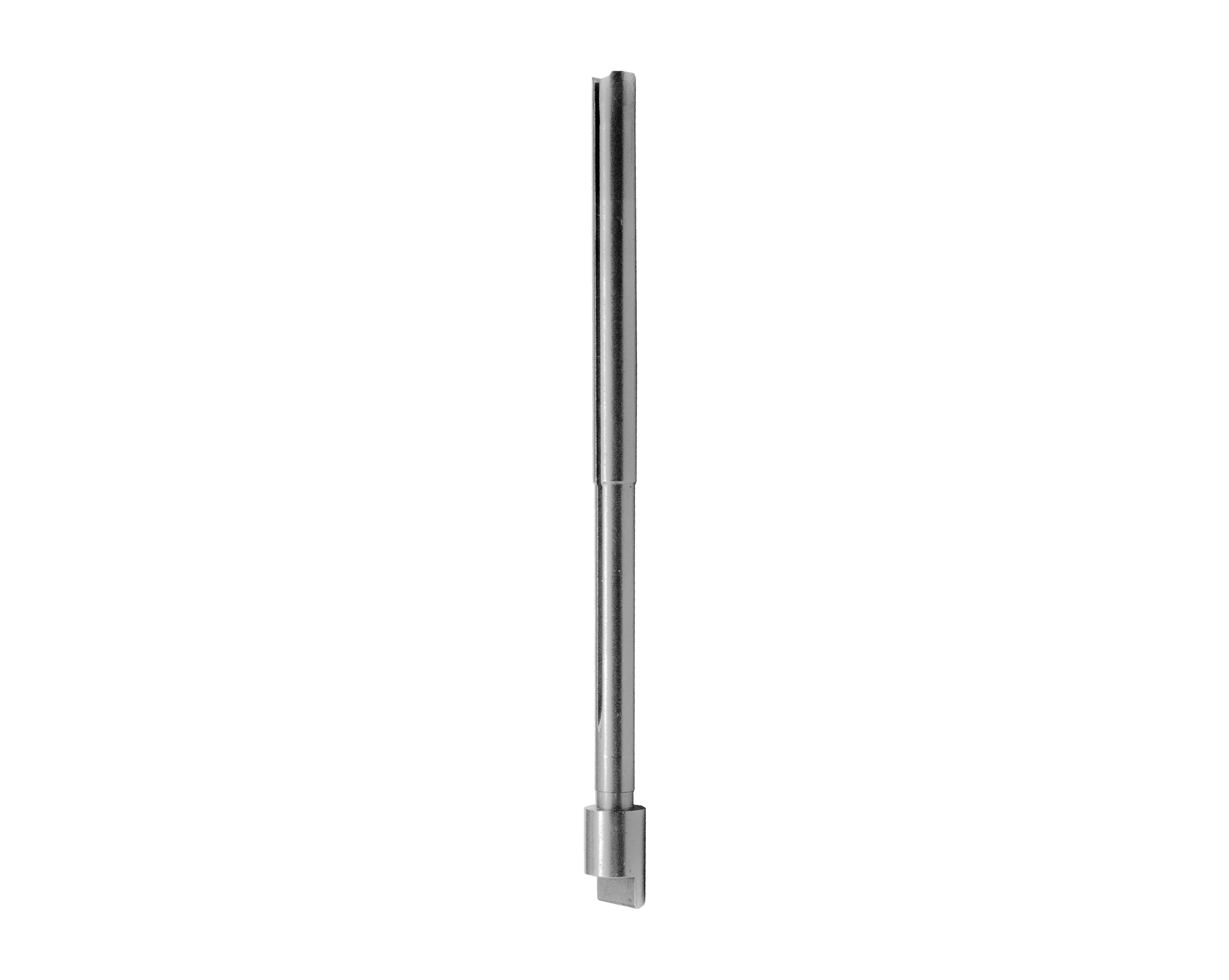

Wire Wrapping Bit, 22-24 AWG

PRODUCT FEATURES

Discontinued

Compatible with our G100/R3278 Wire Wrapping Tool or any model of our PTX power tools, this wire wrap bit is perfect for wrapping 22-24 AWG wire from binding posts. This wrap bit also features the following:

  • Using the compatible sleeve and tool, you can wrap wire onto binding posts quickly and easily
  • Wire Gauge: 22-24 AWG (0.65-0.50 mm)
  • Terminal Hole Diameter: 0.075" (1.9 mm)
  • Compatible Tool Part #'s: G100/R3278, PTX series
  • Compatible Unwrap Sleeve Part #: SW-2224
Learn more about product features Show less

Specifications

Wrap Function

Wrap

Wire Gauge

22-24 AWG (0.65-0.50 mm)

Terminal Hole Depth

0.807" (20.05 mm)

Terminal Hole Diameter

0.075" (1.9 mm)

Wrap Post Size

0.045" (1.14 mm)

Minimum Terminal Diagonal

0.054" (1.37 mm)

Maximum Terminal Diagonal

0.073" (1.85 mm)

Effective Diameter

0.075" (1.9 mm)

Length 3(7.9375cm)
Weight 0.02 lb (9.08 g)
UPC # 811490011632
Wrap Function

Wrap

Wire Gauge

22-24 AWG (0.65-0.50 mm)

Terminal Hole Depth

0.807" (20.05 mm)

Terminal Hole Diameter

0.075" (1.9 mm)

Wrap Post Size

0.045" (1.14 mm)

Minimum Terminal Diagonal

0.054" (1.37 mm)

Maximum Terminal Diagonal

0.073" (1.85 mm)

Effective Diameter

0.075" (1.9 mm)

Length 3(7.9375cm)
Weight 0.02 lb (9.08 g)
UPC # 811490011632
