BNC-10 Copy ID to clipboard

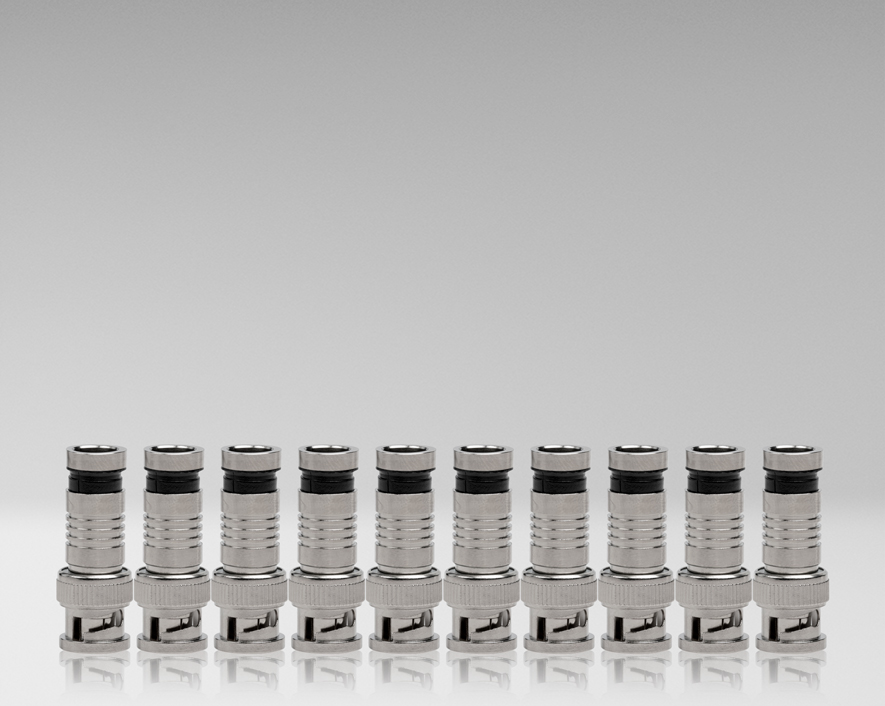

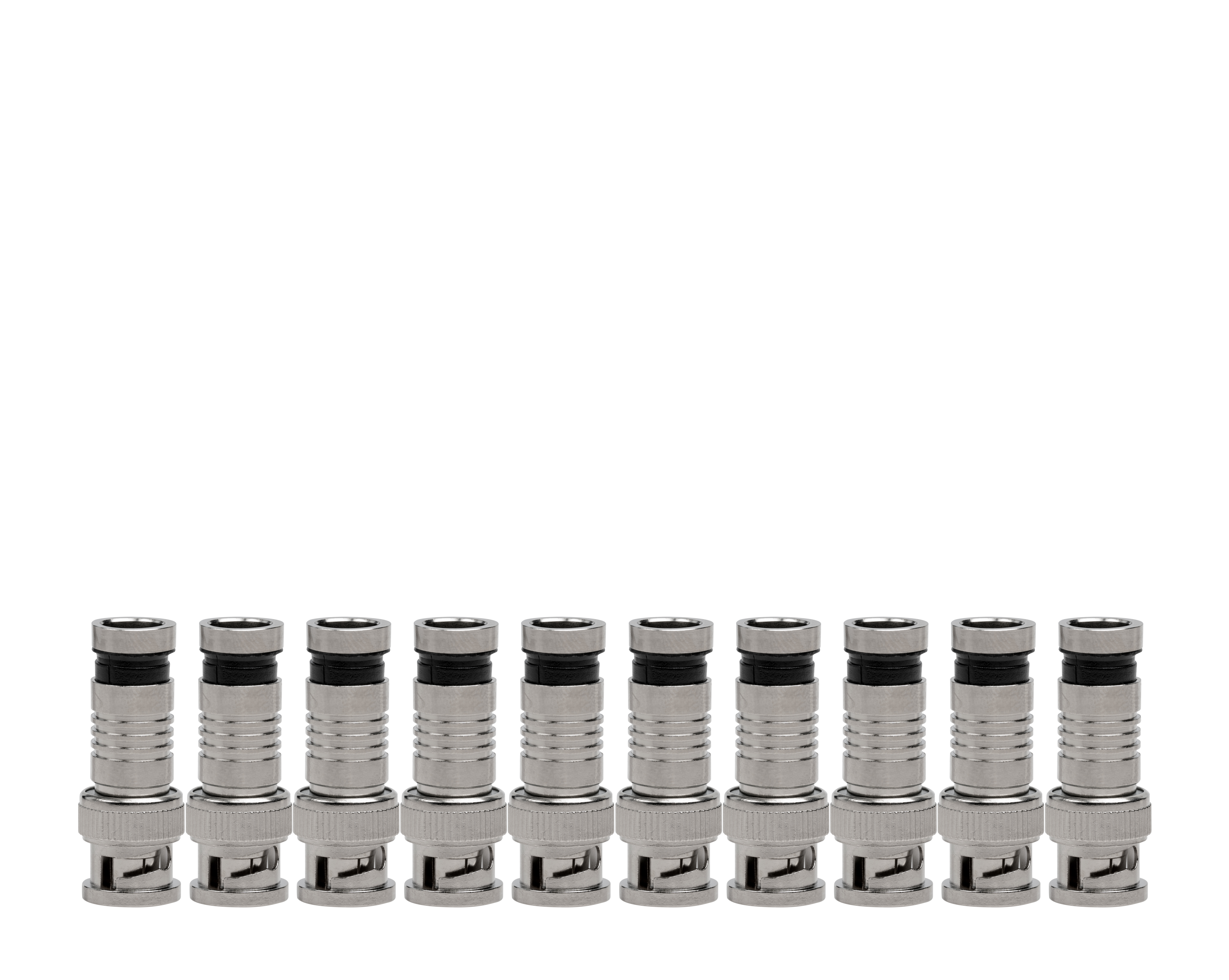

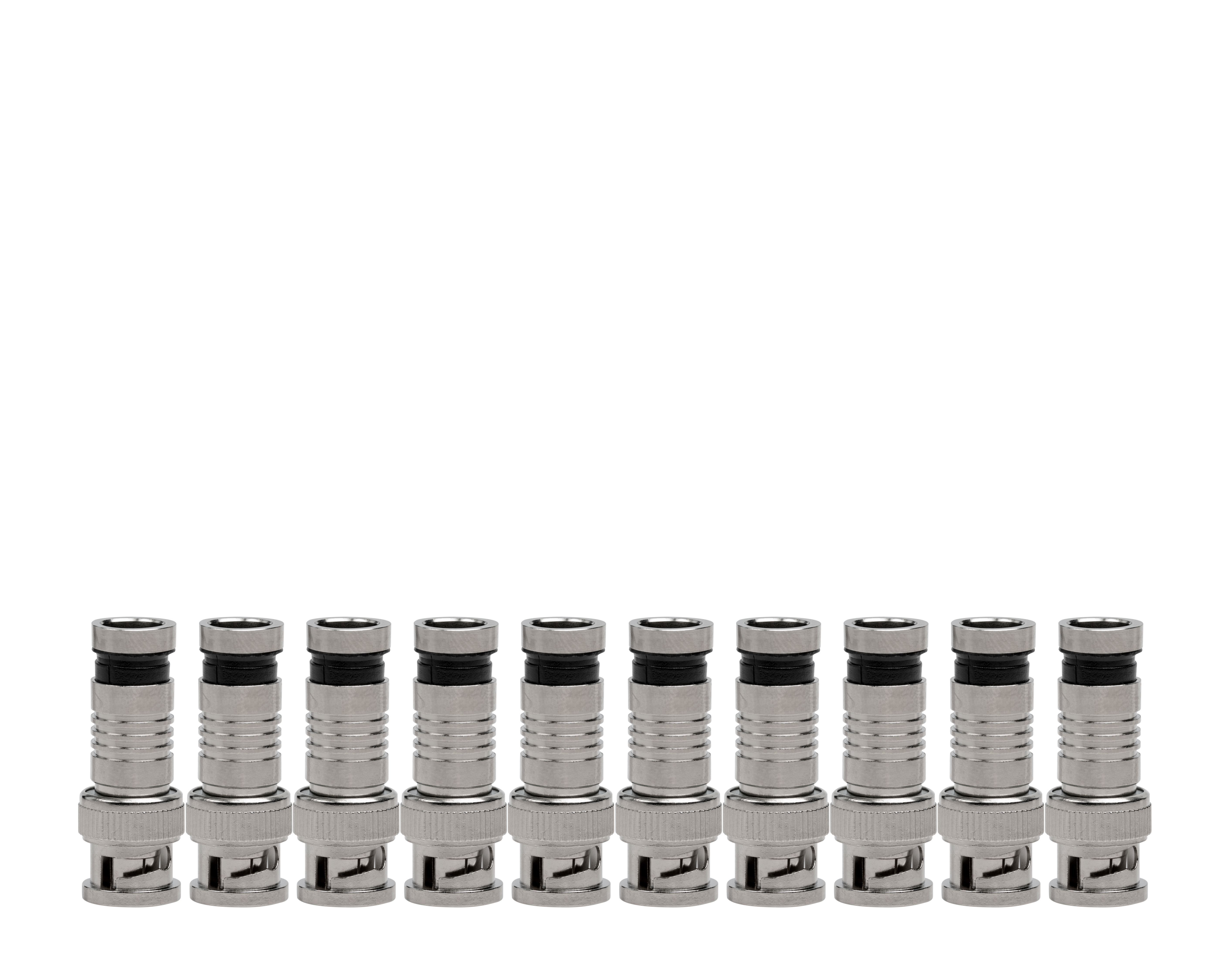

BNC Compression Connectors (Pack of 10)
PRODUCT FEATURES
Designed for use with most major brands of RG6 cable, these BNC connectors are perfect for terminating cables for CCTV or other video applications quickly and easily. These connectors also feature the following:
- Works with most major brands of RG6 cable
- Perfect for multi-shield and plenum cables
- Includes 10 BNC Connectors
Specifications
| Connector Type | BNC |
|---|---|
| Standards | IEC 60169-8 |
| Temperature Range | -25～+85℃ |
| Impedence | 75 Ω |
| Frequency Range | DC～1GHz |
| Working Voltage | 500 V |
| Withstand Voltage | 1500 V |
| Center Contact Res. | ≤ 1.5 mΩ |
| Outer Contact Res. | ≤ 1 mΩ |
| Insulation Res. | ≥ 5000 MΩ |
| VSWR | ≤ 1.45 |
| Insertion Loss | ≤ 0.5 dB |
| Length | 1(2.54cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 810053351673 |
