What Are VDV Systems?

VDV (voice/data/video) systems are low-voltage cabling systems that are used to transmit voice, data, and video signals. They are typically used in commercial and industrial settings, but are also commonly found in homes. VDV systems usually consist of a high-capacity backbone cable that carries the main signal traffic. This backbone cable is then connected to a series of distribution cables, which then carry the signal traffic to individual devices. These systems can use a variety of different cable types, including copper cables, fiber optic cables, and coaxial cables. The type of cable being used will depend on the specific application. VDV systems are an integral part of modern communications infrastructure, as they allow businesses and homes to transmit voice, data, and video signals quickly and reliably. In order to help you properly interact with these systems, Jonard Tools has created a list of the top 5 tools for VDV systems!

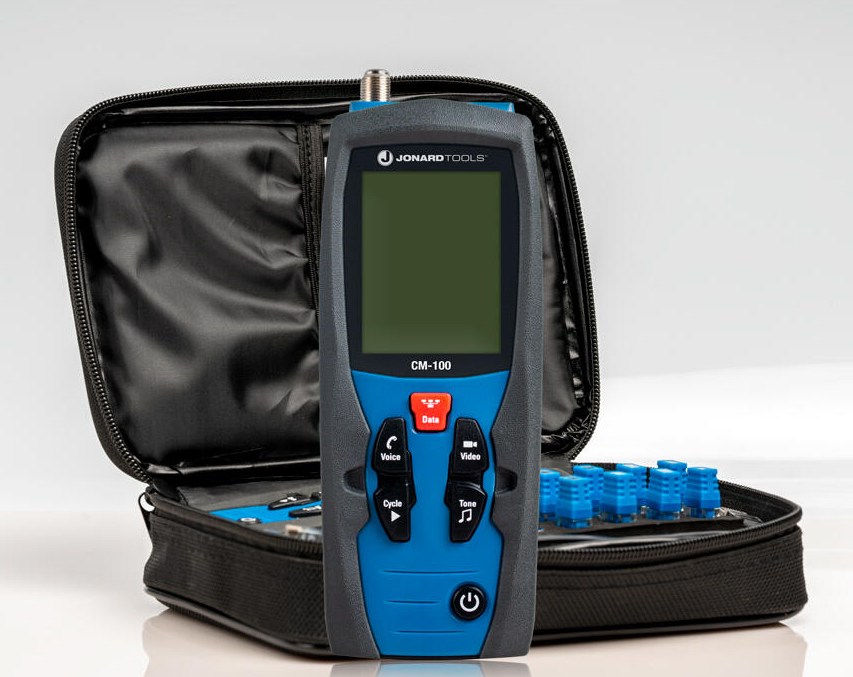

01 | The CM-100

The Cable Mapper Pro from Jonard Tools is a cable mapper and toner that is used to identify and trace cables in a variety of applications. It can be utilized to map out cable runs in a building, to troubleshoot cable problems, or to identify the source of a cable fault. The CM-100 has a number of features that make it a versatile and powerful tool for cable identification and tracing. Some of these features include:

• A built-in tone generator that can be used to generate a tone on a selected cable. This tone can then be used to trace the cable by following the sound.

• A backlit LCD display that shows the status of the tool and the results of the cable identification/tracing.

• A variety of cable identification modes that can be used to identify different types of cables, which includes Coax, Ethernet, Telephone, and Generic.

• A built-in battery that provides up to 8 hours of battery life.

The CM-100 is a perfect tool that will help ensure a stable connection and a working VDV system!

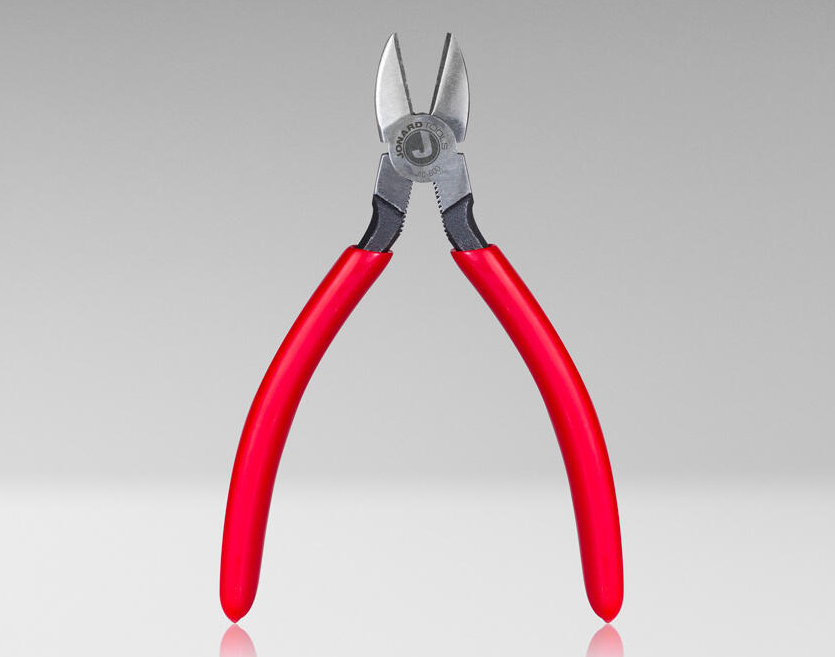

02 | The JIC-600

The JIC-600 is a combination wire stripper and diagonal cutter. It is a versatile tool that can be used for a variety of tasks, including cutting wire, stripping insulation, and crimping connectors. The JIC-600 has a number of features that make it a valuable tool for VDV systems. These features include:

• A sharp diagonal cutter that can be used to cut wire quickly and easily.

• A wire stripper that can be used to strip insulation from a variety of wire gauges.

• A crimper that can be used to crimp connectors onto wires.

• A comfortable grip that makes it easy to use for extended periods of time.

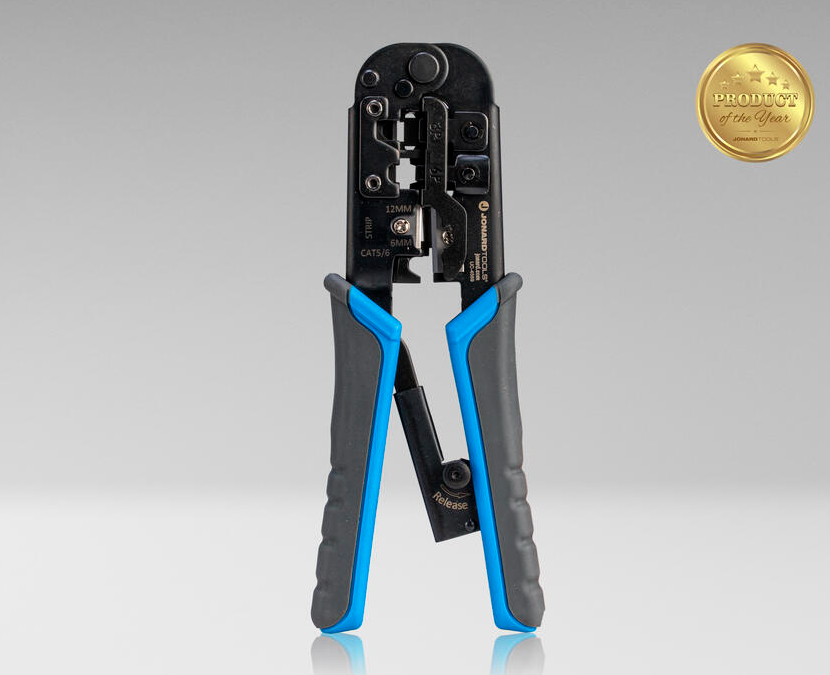

03 | The Crimping Tool

The UC-4569 is a specialized tool used to create a secure electrical connection between a wire and a terminal/connector. It is designed to compress and deform a metal sleeve or crimp onto the wire and terminal, creating a reliable and durable electrical joint. The primary purpose of a crimping tool is to ensure a proper and consistent connection by mechanically deforming the metal sleeve. This deformation creates a tight grip on the wire, establishing a strong electrical and mechanical bond between the wire and the terminal. Crimping tools come in various designs and sizes to accommodate different types and sizes of connectors and terminals. They may have interchangeable dies or jaws that match specific crimp sizes and shapes, ensuring precise and accurate crimping. Crimping is widely used in industries such as electrical, telecommunications, automotive, and aerospace, where reliable and efficient electrical connections are crucial. Properly crimped connections offer excellent conductivity, mechanical strength, and resistance to vibration and corrosion when dealing with VDV systems. For optimal connectivity, check out our 6-in-1 model!

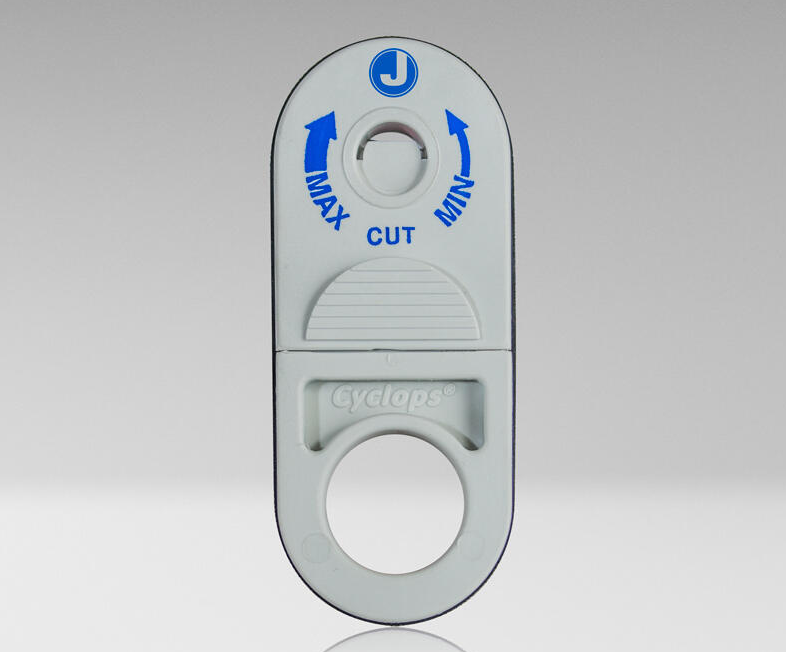

04 | The CST-1i

The CST-1i (also called the Cyclops Wire Stripper) from Jonard Tools is a specialized tool designed for stripping the insulation from electrical wires. It is a versatile tool that can be used for a variety of wire gauges, including 18 AWG to 22 AWG. The Cyclops Wire Stripper also has a self-adjusting blade that makes the insulation stripping easy without damaging the wire. Additionally, it includes a built-in wire cutter that makes cutting the wire easy after the insulation has been stripped. The CST-1i is a valuable tool and a great option for those looking for an easy-to-use tool. Furthermore, it is a safe tool to use, as the self-adjusting blade prevents you from cutting the wire too deeply.

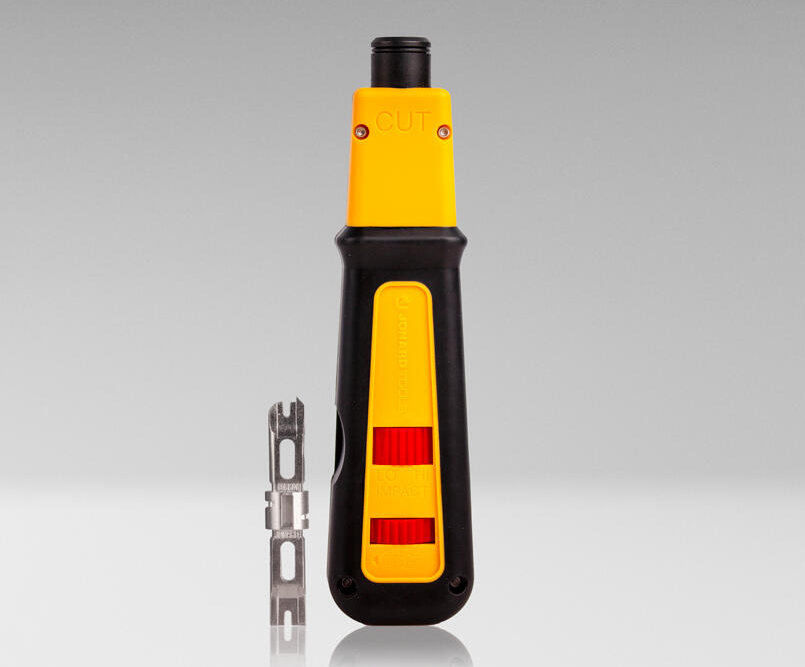

05 | The EPDS-914110

The EPDS-914110 is a punchdown tool that is designed to terminate any telecom or data communications installer. Compatible with our EPB Series Blades, it is a resourceful tool that can be used for a multitude of cable types, including CAT5e, CAT6, and CAT6a. The EPDS-914110 has a self-adjusting punch that makes the cable easy to terminate without damaging the conductors. It also has a built-in cable cutter that allows for a smooth cut of the cable after the termination has been completed. The EPDS-914110 is a valuable tool for networking work and a great option for those looking for a versatile and easy-to-use tool. It is also a safe tool to use, as the self-adjusting punch prevents you from damaging the conductors.

Having these 5 tools in your repertoire will make interacting with VDV systems simple and easy. Here at Jonard tools, we pride ourselves in manufacturing the most efficient, unique, and durable products to get the job done. If that weren't enough, we couple them all with a Made For Life, Guaranteed For Life warrantee!
