AR-910672 Copy ID to clipboard

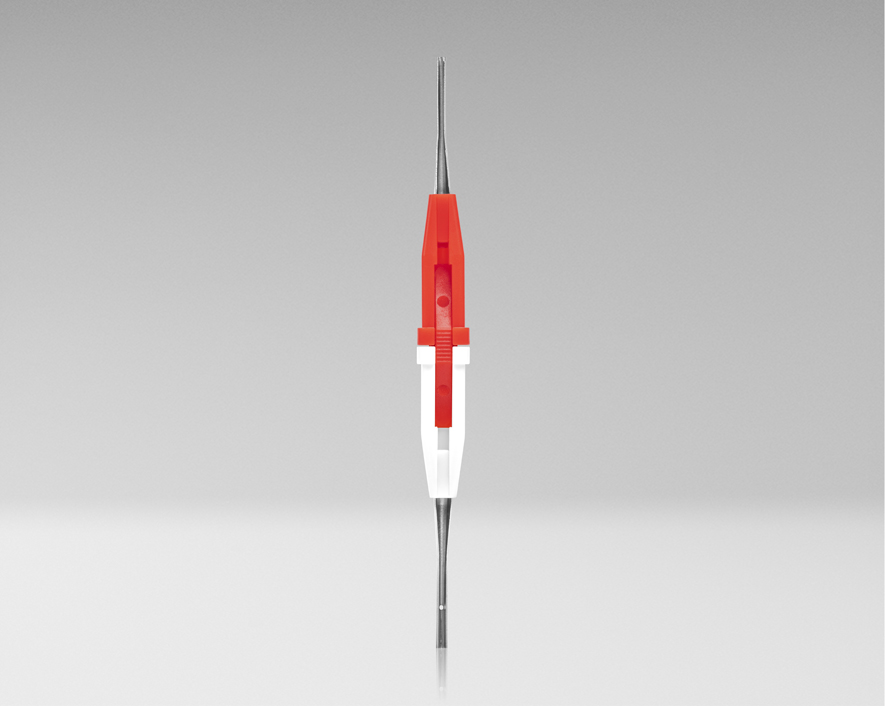

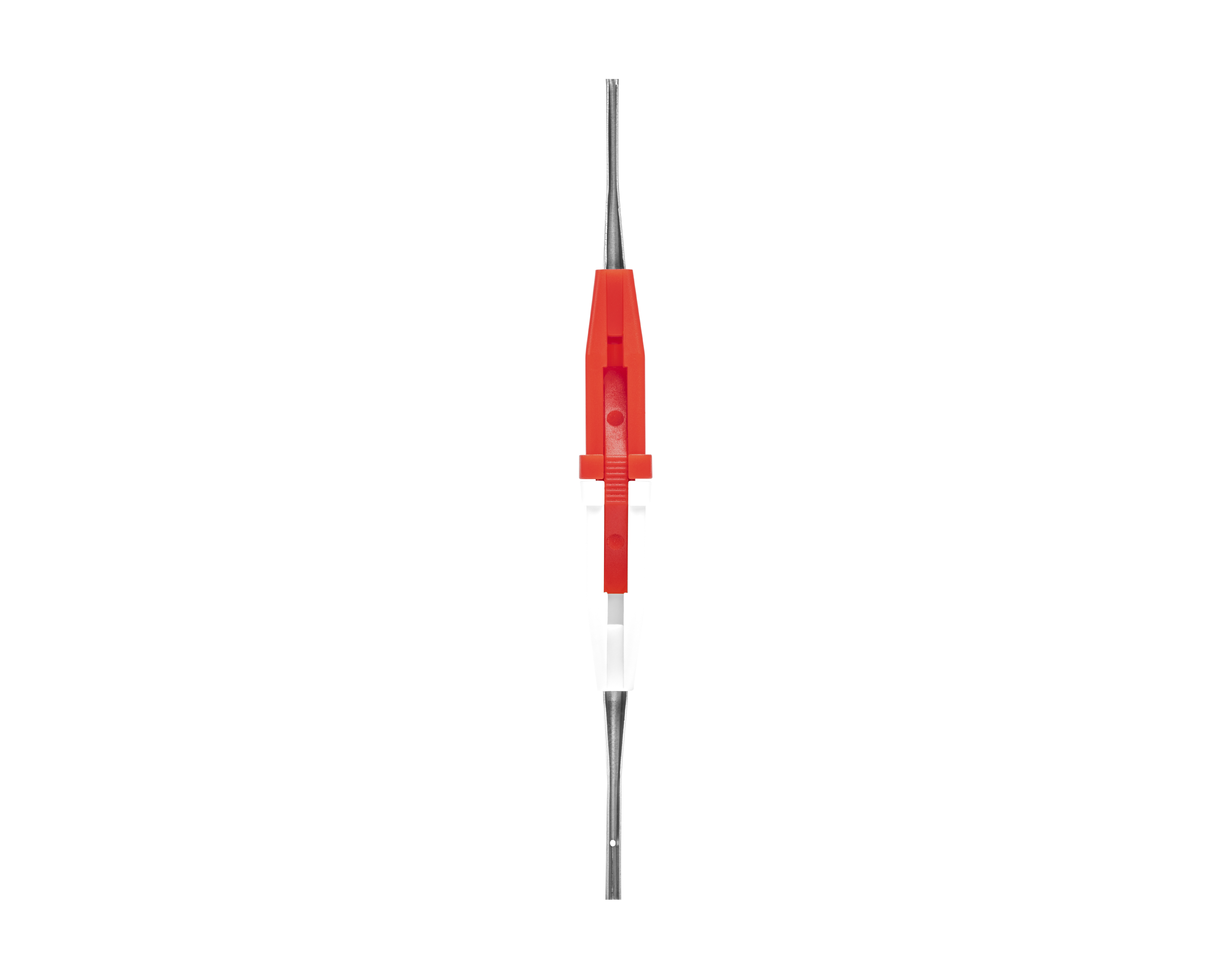

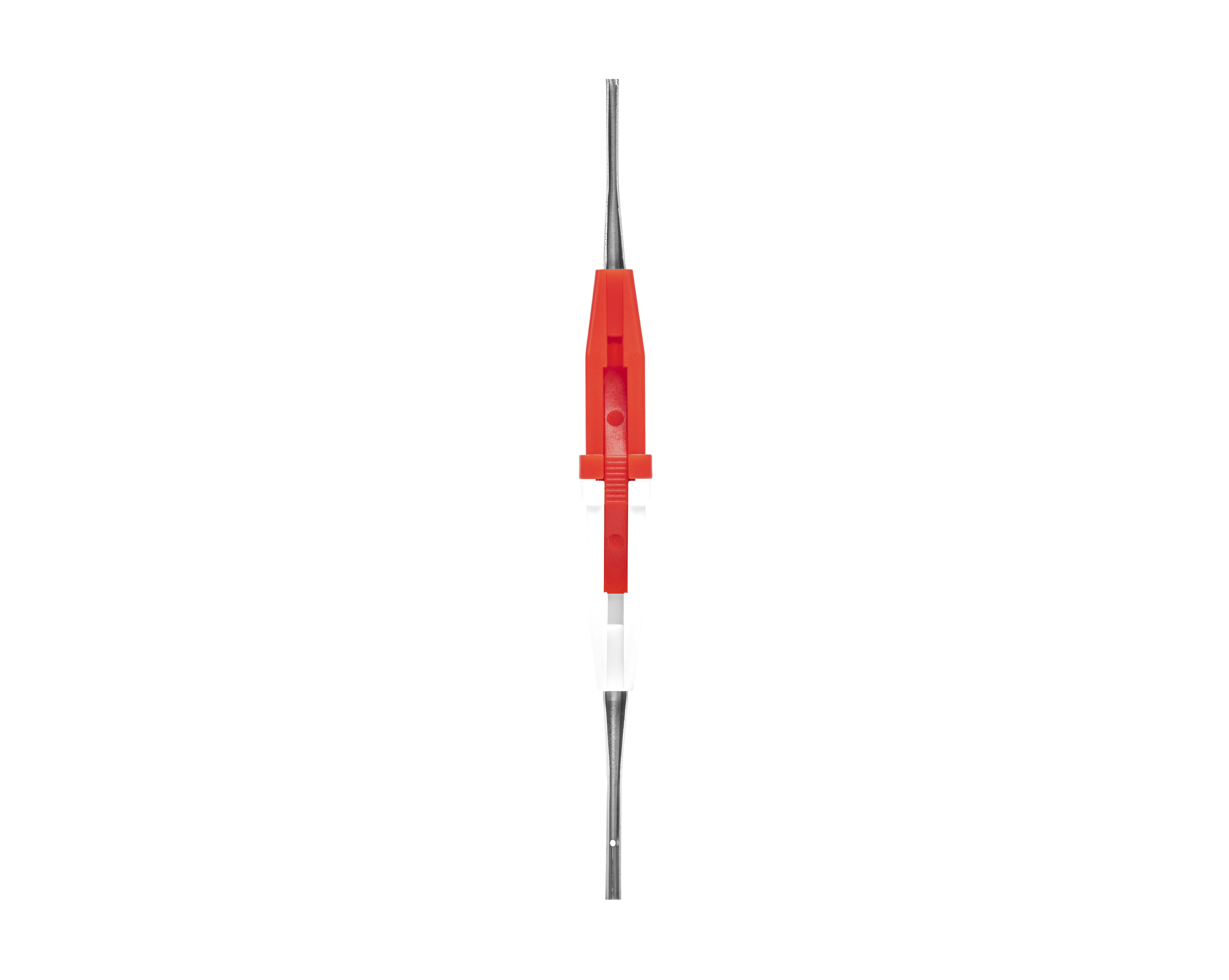

Insertion & Extraction Tool, Contact Size 20

PRODUCT FEATURES

This tool is perfect for inserting and extracting size 20 front release contacts made by most manufacturers. This insertion tool features the following:

  • Probes constructed from brass to prevent damage to contacts
  • Housing made from color-coded ABS: Red side is for insertion and white side is for extraction
  • For use on TE Connectivity Amplimite series HDP-20 plugs and pins, including the following:
    • 215712-1 Plug 15 POS Crimp Snap
    • 215711-1 Plug 9 POS Crimp Snap
    • 1218266-1 Pin 18 AWG Gold Crimp
    • 194081-1 Pin 1.04 mm without Louver Band
    • 205089-2 D-Sub Pin 20-24 AWG Crimp
Learn more about product features Show less

Specifications

Function

Insertion, Extraction

Contact Size

20 (0.040")

Product Material Brass
Product Main Color Red/White
Handle Material ABS Plastic
Length 3(9.9568cm)
Weight 0 lb (0 g)
UPC # 811490012370
