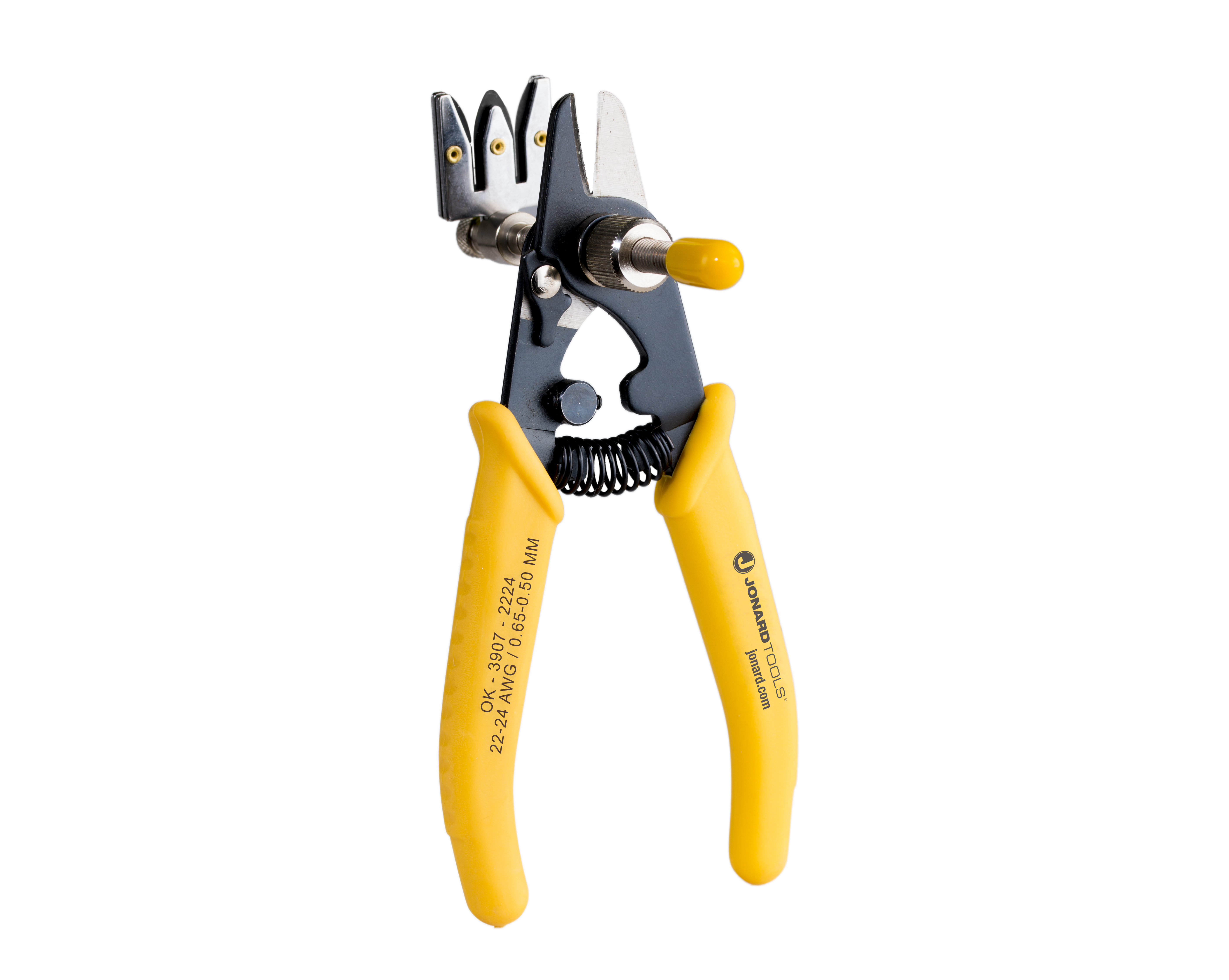

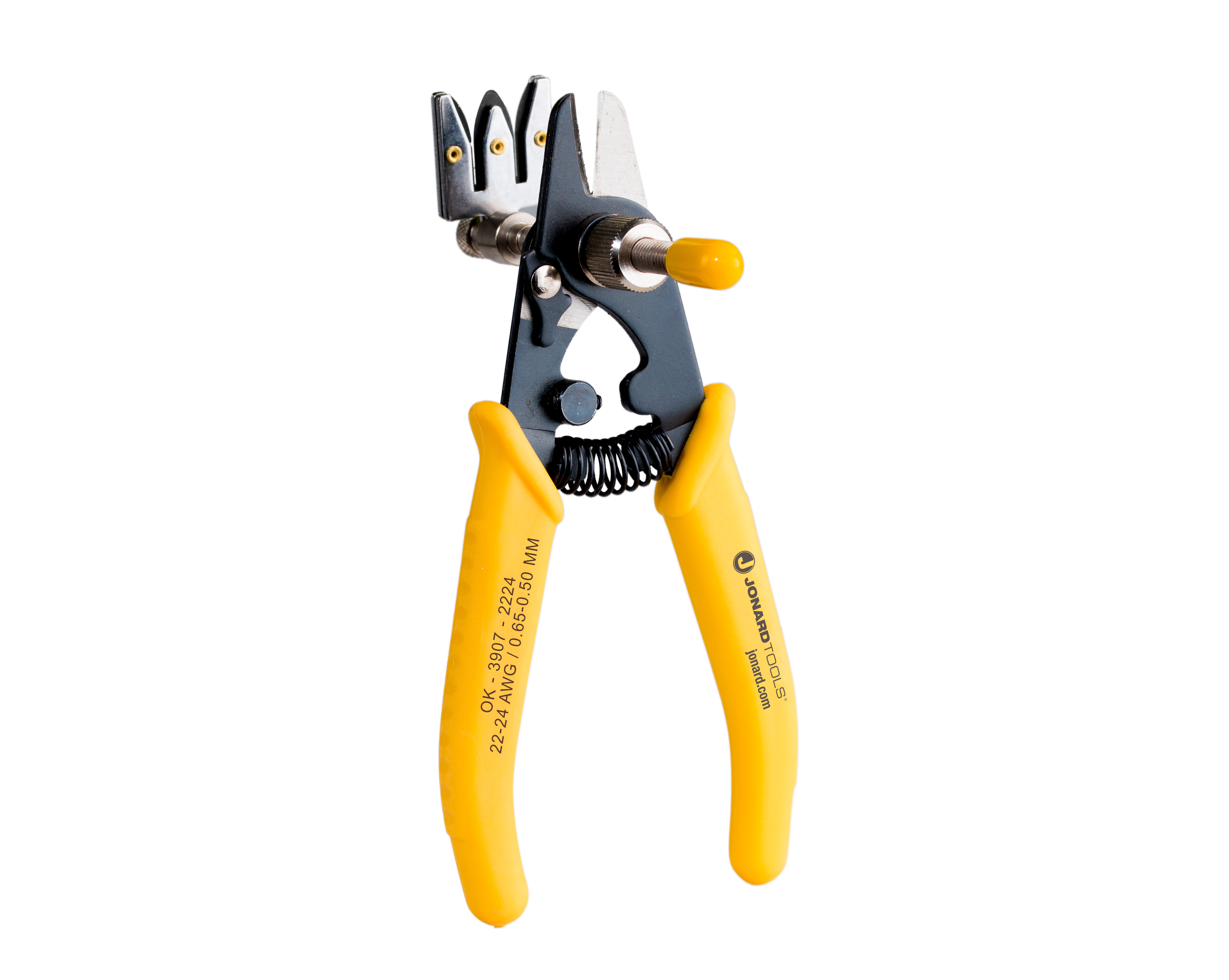

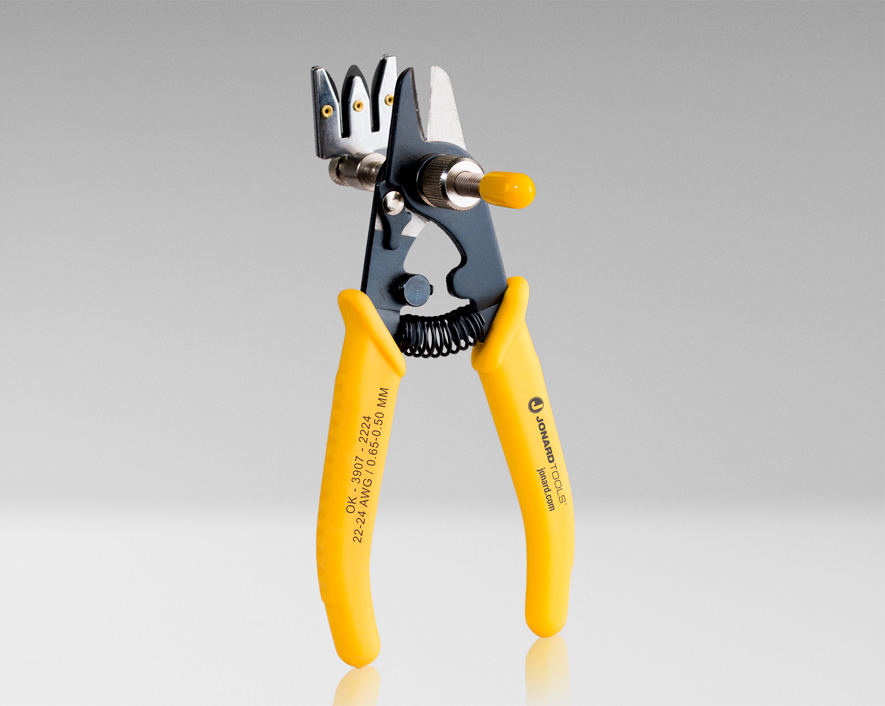

OK-3907-2224 Copy ID to clipboard
Cut-Strip Tool, 22-24 AWG
PRODUCT FEATURES
Discontinued - Superseded by the JIC-4473
Designed to cut and strip 22-24 AWG (0.65-0.50 mm diameter) wire, this tool is perfect for cutting and stripping wire to wire wrap length quickly and easily. This tool also features the following:
- Simultaneously cuts and strips wire to 1 1/2" to 1 3/4" (38.10 mm to 44.45 mm) long, ideal for wire wrapping
- Ergonomic cushioned grips ensure maximum comfort and a slip-free grip
- Compatible with SB-2426 and SB-2830 blades to cut and strip 24-26 and 28-30 AWG wire
Strip Gauge
Strip Gauge: 22-24 AWG (0.64 mm-0.51 mm)
Specifications
| Function | Cutting, Stripping |
|---|---|
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Adjustable Strip-off Length | 1.50" to 1.75" (38.10 mm to 44.45 mm) |
| Handle Color | Yellow |
| Weight | 0 lb (0 g) |
| UPC # | 811490010789 |
Specifications
| Function | Cutting, Stripping |
|---|---|
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Adjustable Strip-off Length | 1.50" to 1.75" (38.10 mm to 44.45 mm) |
| Handle Color | Yellow |
| Weight | 0 lb (0 g) |
| UPC # | 811490010789 |
