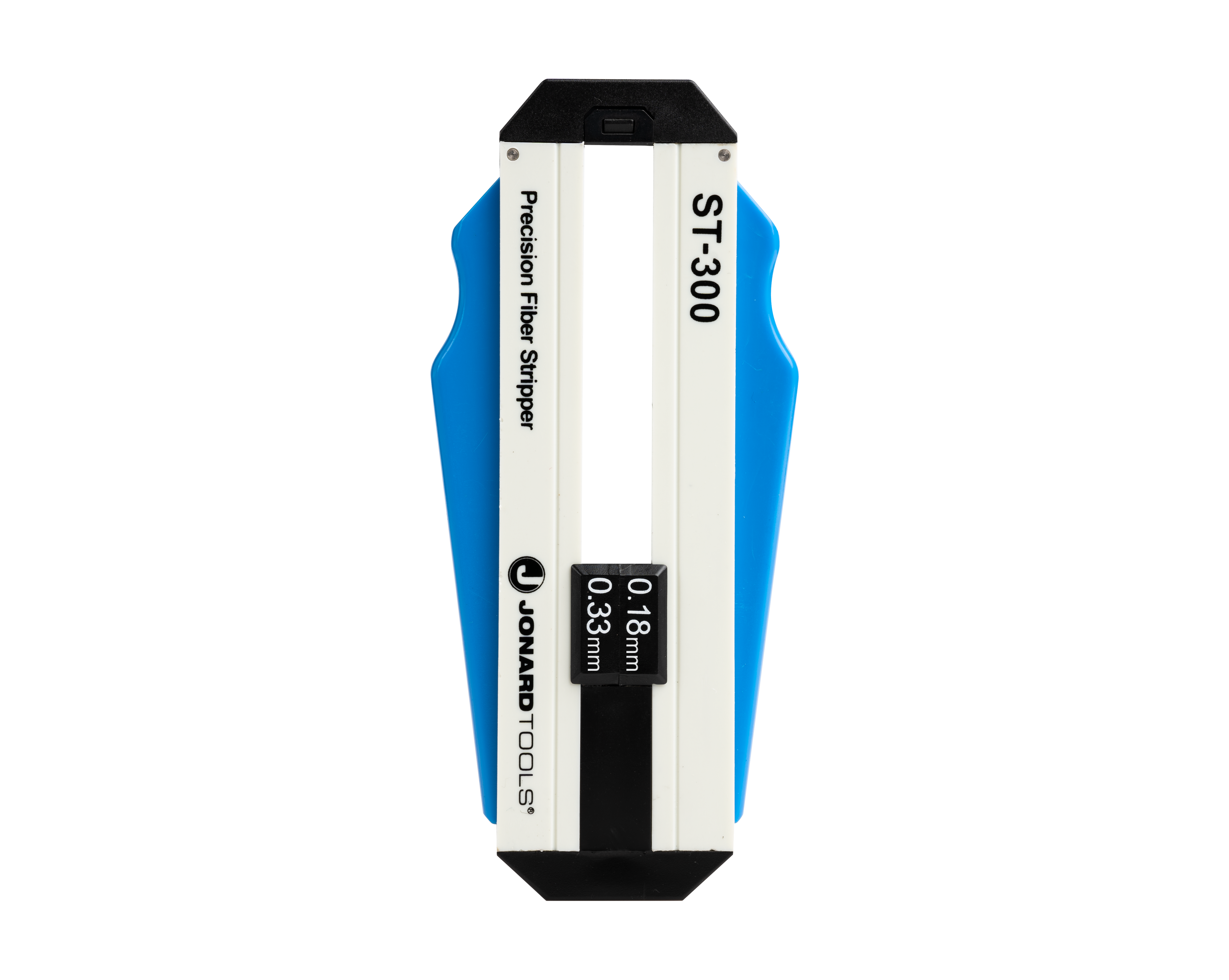

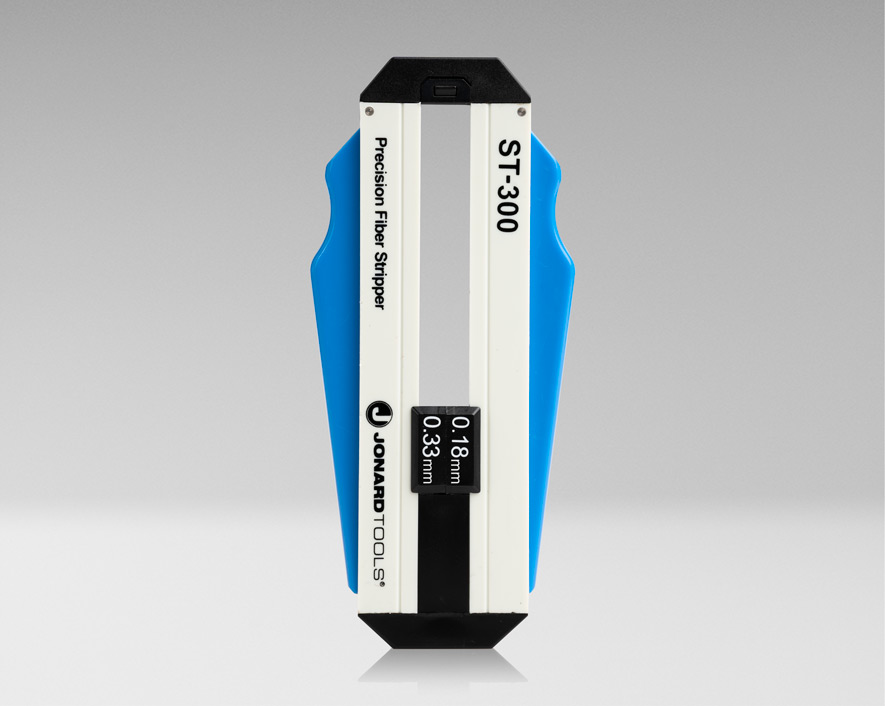

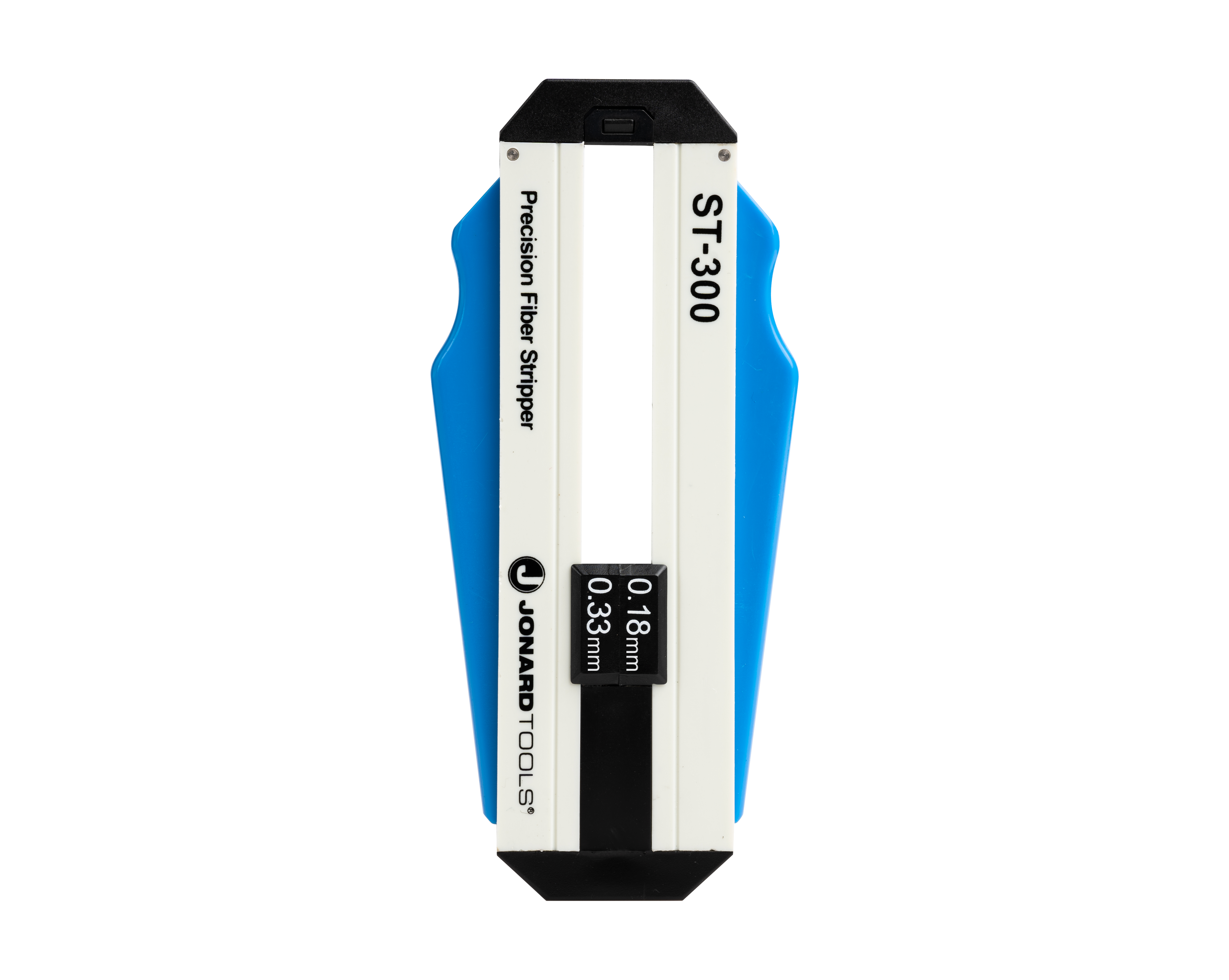

Precision Fiber Optic Stripper (180 - 330 Micron)
ST-300 Copy ID to clipboard
Buy OnlineWire Gauges
Model: 180 - 330 Micron
PRODUCT FEATURES
Designed for precision fiber optic stripping, this tool is perfect for stripping the 180 - 330 micron acrylate coating to expose the 125 micron glass fiber of fiber optic cables. This precision fiber stripper also features the following:
- Precision blades strip the 180 - 330 micron acrylate coating to expose the 125 micron glass fiber of fiber optic cables
- Blades are precision ground and hardened for accurate stripping and long life
- 2" (50 mm) scale with 1 mm graduations and length stop to strip fiber to specific lengths
- Compact and lightweight design for maximum portability
NOTE: Clean the stripping hole periodically to avoid acrylate coating build-up.
Specifications
| Cut Type | Strip |
|---|---|
| Wire Gauge | |
| Maximum Strip Length | 2.0" (50.8 mm) |
| Strip Length | 0.039" - 2.0" (1.0 mm - 50.8 mm) |
| Blade Material | Hardened Steel |
| Finish | |
| Cable Size | |
| Handle Length | |
| Cable Type | Fiber |
| Strip Diameter | 0.0071" - 0.13" (0.18 - 0.33 mm) |
| Dimensions | 3 in x 1 in x 0 in (7.62 cm x 2.54 cm x 0 cm) |
| Weight | 0.05 lb (22.7 g) |
| UPC # | 810053351901 |
| Cut Type | Strip |
|---|---|
| Wire Gauge | |
| Maximum Strip Length | 2.0" (50.8 mm) |
| Strip Length | 0.039" - 2.0" (1.0 mm - 50.8 mm) |
| Blade Material | Hardened Steel |
| Finish | |
| Cable Size | |
| Handle Length | |
| Cable Type | Fiber |
| Strip Diameter | 0.0071" - 0.13" (0.18 - 0.33 mm) |
| Dimensions | 3 in x 1 in x 0 in (7.62 cm x 2.54 cm x 0 cm) |
| Weight | 0.05 lb (22.7 g) |
| UPC # | 810053351901 |
