AHC-10 Copy ID to clipboard

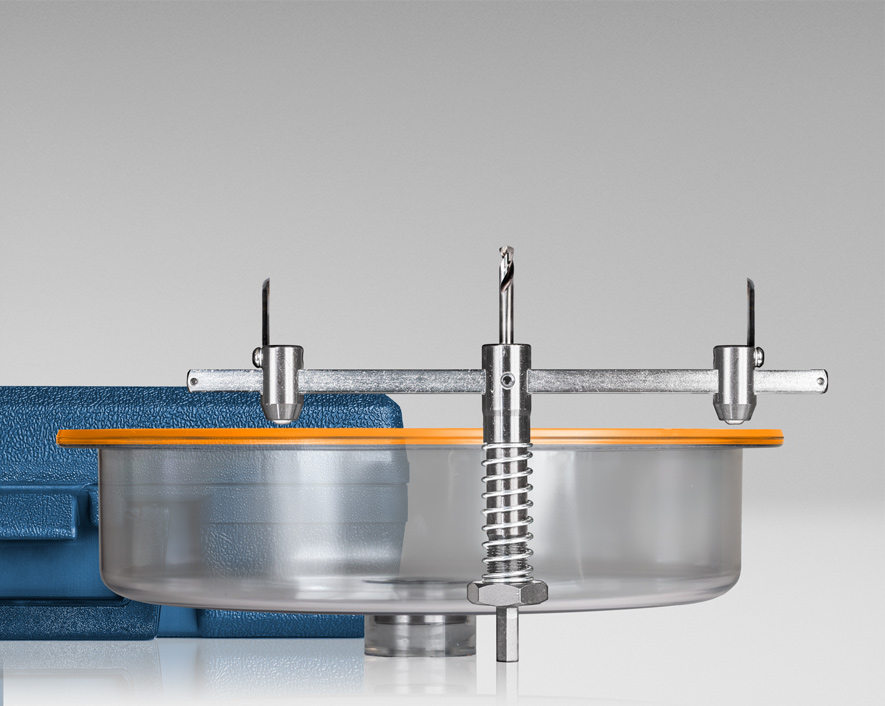

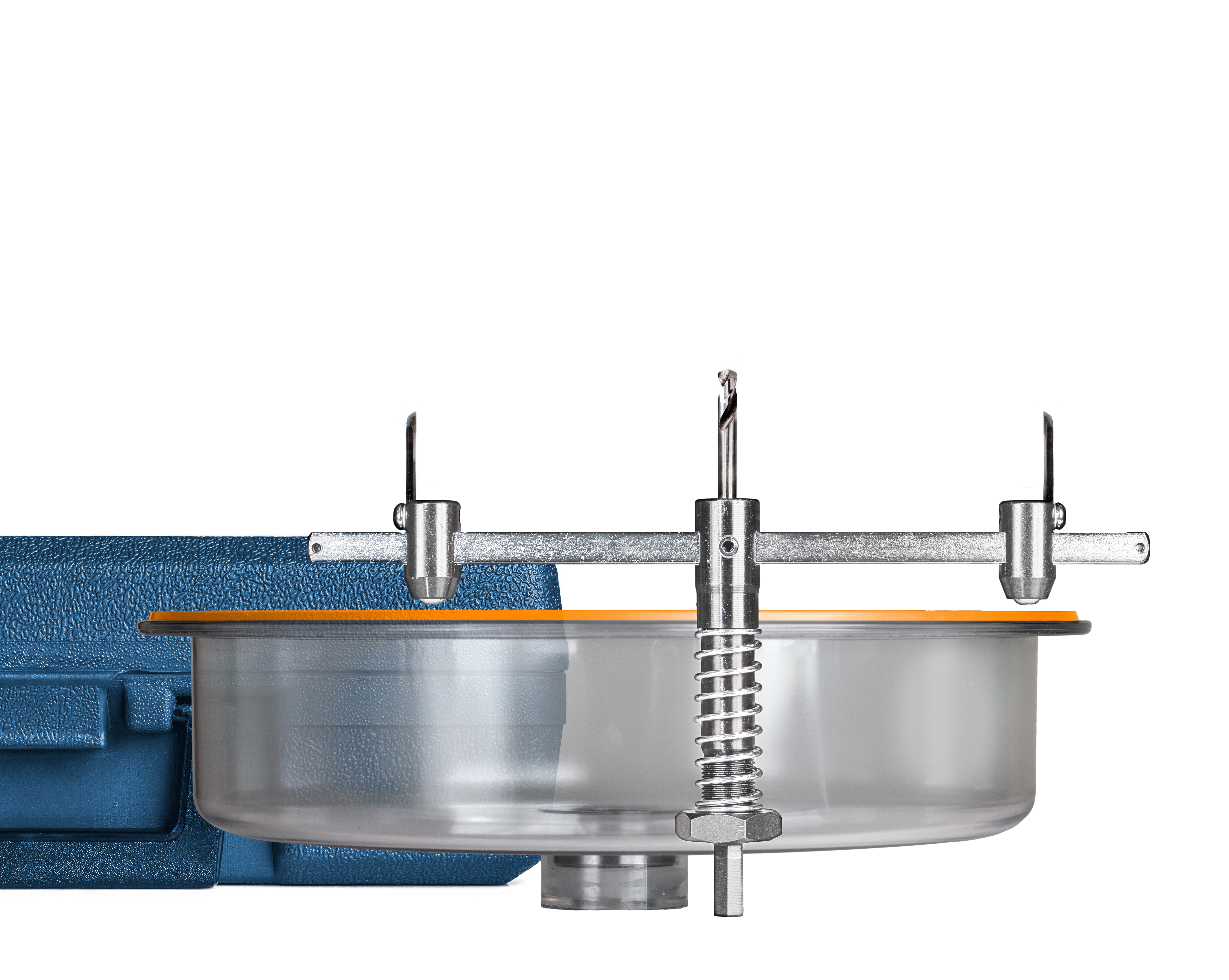

Adjustable Round Hole Cutter, 2.2"-10"

PRODUCT FEATURES

The Jonard Tools AHC-10 adjustable hole cutter is designed for cutting round holes in ceilings, walls, and floors and is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following:

  • Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (2.7 cm) thick
  • Cutting depth is adjustable via hex locknut and compression spring
  • Cuts hole sizes from 2.2” (55 mm) to 10” (254 mm)
  • Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
  • Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
  • Compression spring absorbs vibrations while cutting
  • Can be used with any variable-speed drill
  • Includes rugged carry case
  • Power drill not included with hole cutter
  • Lifetime Warranty
Learn more about product features Show less

Additional Features

Additional Features: Standard

Specifications

Cut Type

Round Hole

Works On

Plywood, Sheetrock, Plasterboard, Acrylic Sheet

Cutting Diameter Range

2.2"-10" (56 mm-256 mm)

Maximum Cutting Depth

1.1" (27 mm)

Bit Diameter

0.236” (6.0 mm)

Bit Length

1.70” (43.27 mm)

Bit Material

Steel

Hex Chuck Size/Arbor Size

3/8" (9.53 mm)

Dimensions

13.5" x 4.6" x 14.1" (342 mm x 118 mm x 360 mm)

Product Material Steel
Weight 2.53 lb (1148.62 g)
UPC # 811490017764
Cut Type

Round Hole

Works On

Plywood, Sheetrock, Plasterboard, Acrylic Sheet

Cutting Diameter Range

2.2"-10" (56 mm-256 mm)

Maximum Cutting Depth

1.1" (27 mm)

Bit Diameter

0.236” (6.0 mm)

Bit Length

1.70” (43.27 mm)

Bit Material

Steel

Hex Chuck Size/Arbor Size

3/8" (9.53 mm)

Dimensions

13.5" x 4.6" x 14.1" (342 mm x 118 mm x 360 mm)

Product Material Steel
Weight 2.53 lb (1148.62 g)
UPC # 811490017764
