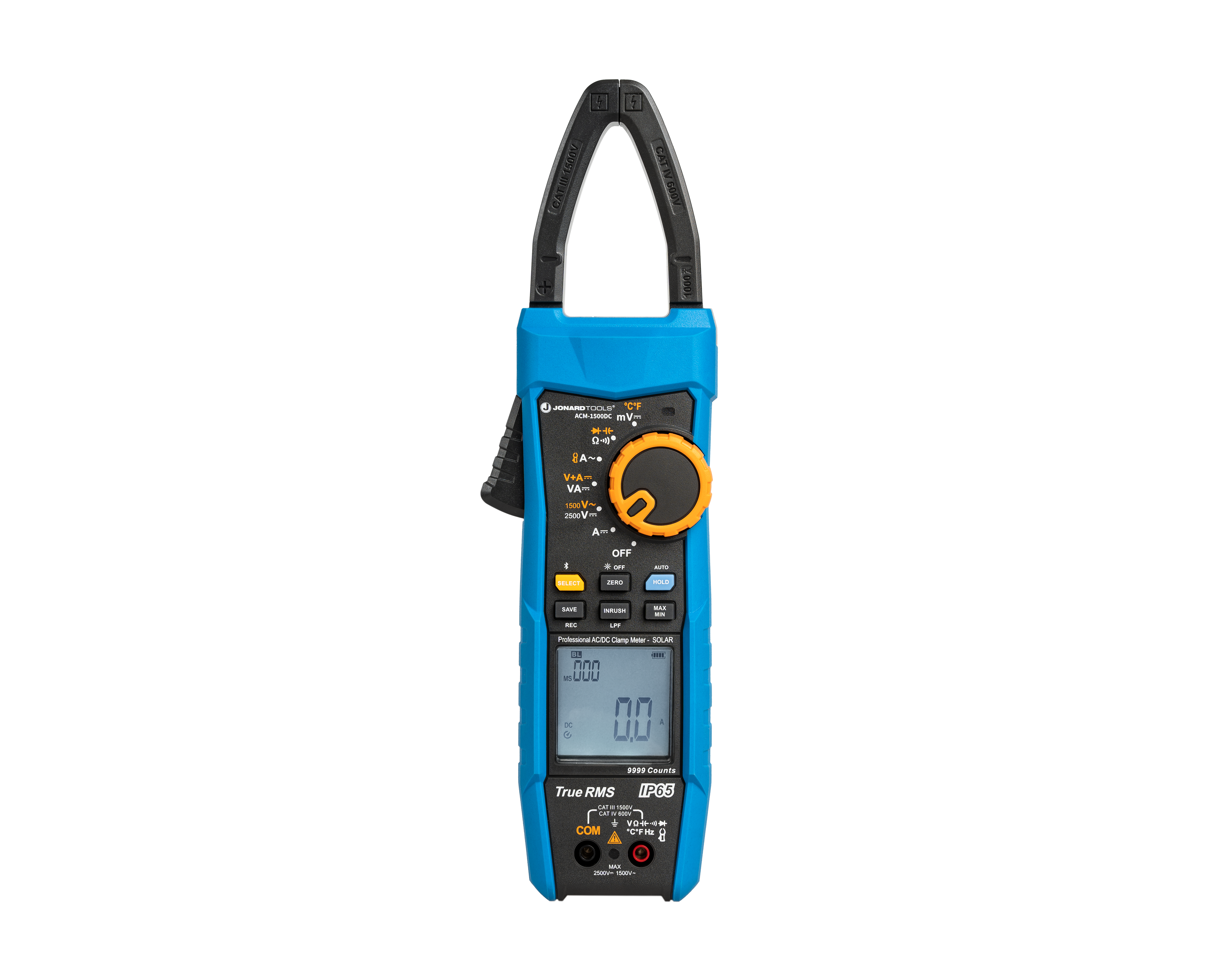

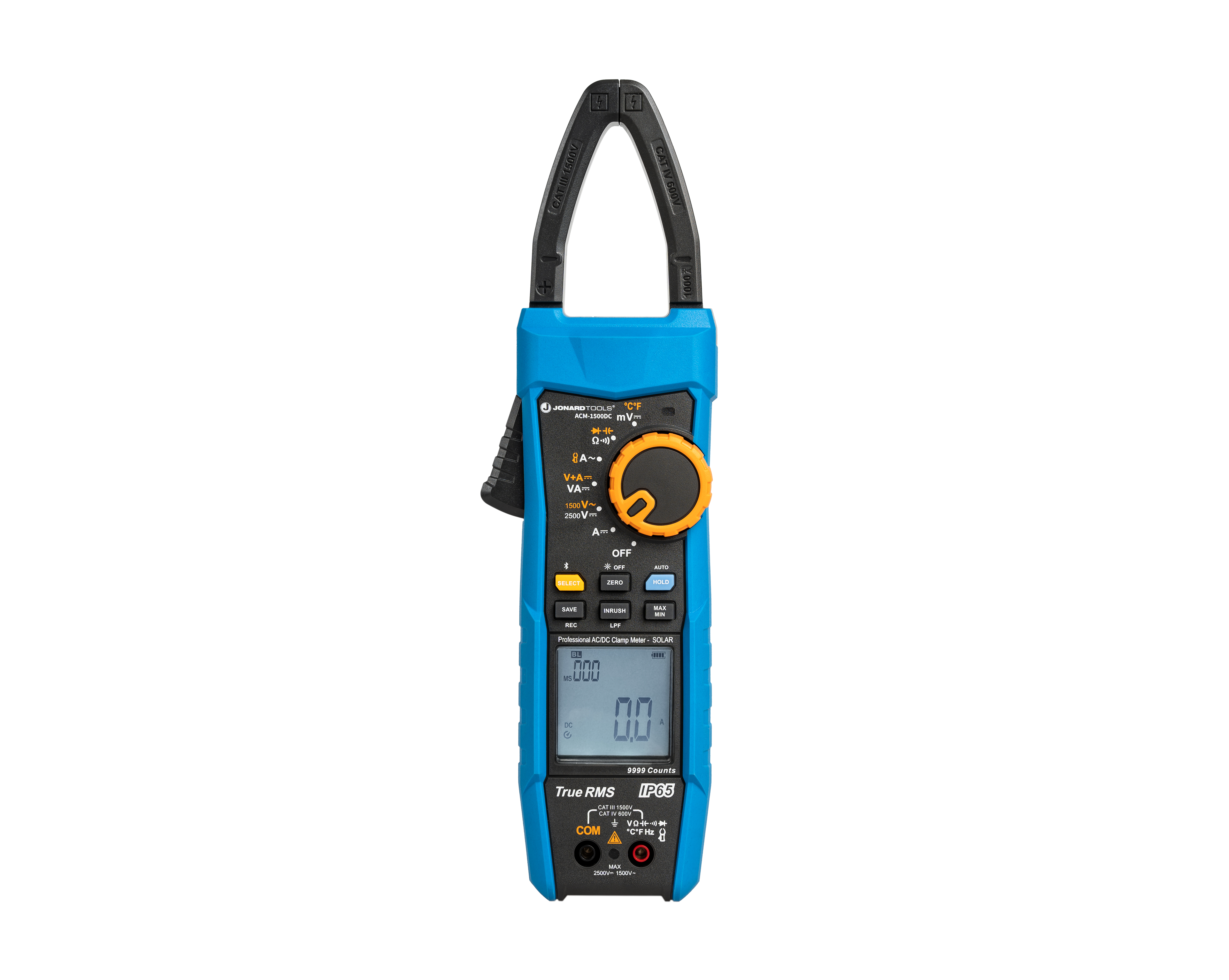

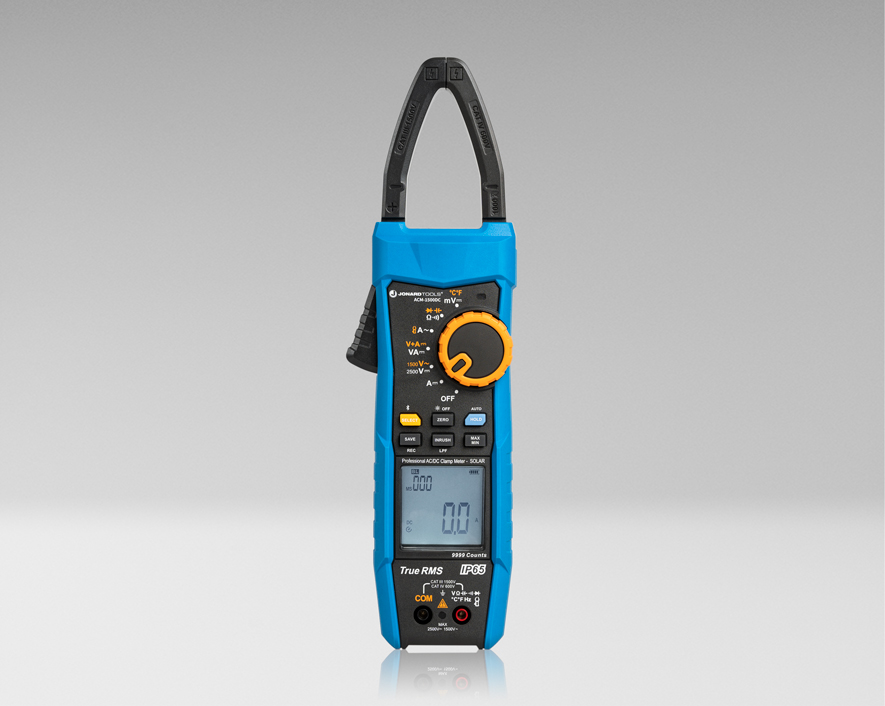

Solar+ Clamp Meter CAT III 1500 V
ACM-1500DC Copy ID to clipboard
Buy OnlinePRODUCT FEATURES
- Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
- CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks
- Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter
- Test results can be saved onto onboard storage and can be transferred via Bluetooth
- IP 65 rating for dust and water resistance for ultimate protection while working outdoors
Specifications
| Max AC Current | 999.9 A |
|---|---|
| Max DC Current | 999.9 A |
| Max AC Voltage | 1500 V |
| Max DC Voltage | 2500 V |
| Power (DC) | 999.9 kVA/2500 kVA |
| Resistance | 999.9 Ohm/9.999 kOhm/99.999 Mohm |
| Capacitance | 100.0 uF/1000 uF |
| Temp | '-40°C~400°C/-40°F~752°F |
| Jaw Opening | 35 mm |
| Overvoltage Category | CAT III 1500V/CAT IV 600V |
| Bluetooth App | BT 5.0 |
| Inrush Current | ✓ |
| PEAK | ✓ |
| LPF | ✓ |
| True RMS | ✓ |
| Dimensions | 12 in x 5 in x 2 in (30.48 cm x 12.7 cm x 5.08 cm) |
| Weight | 2.04 lb (926.16 g) |
| UPC # | 810132435454 |
