ACM-1000 Copy ID to clipboard

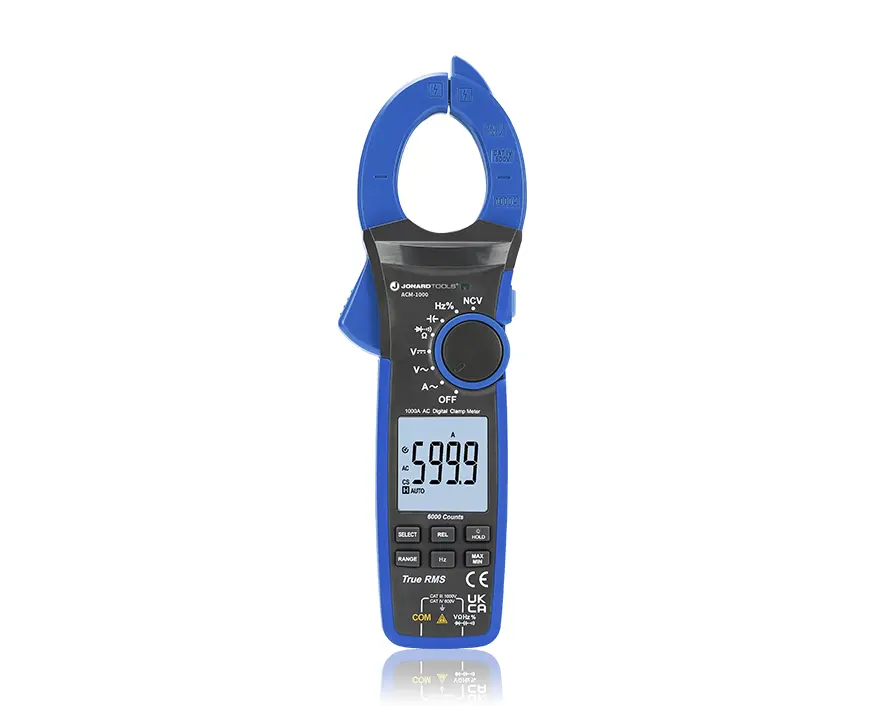

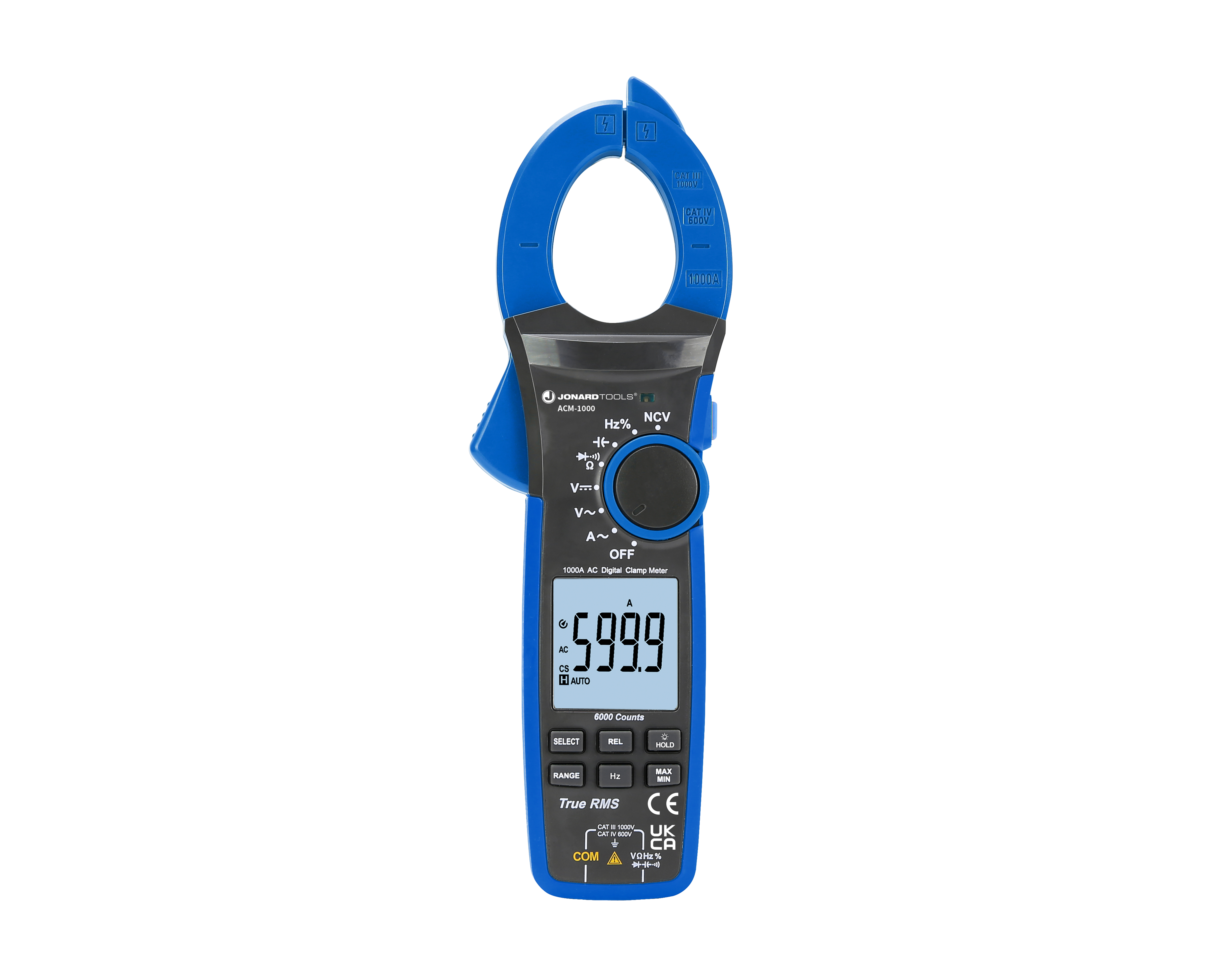

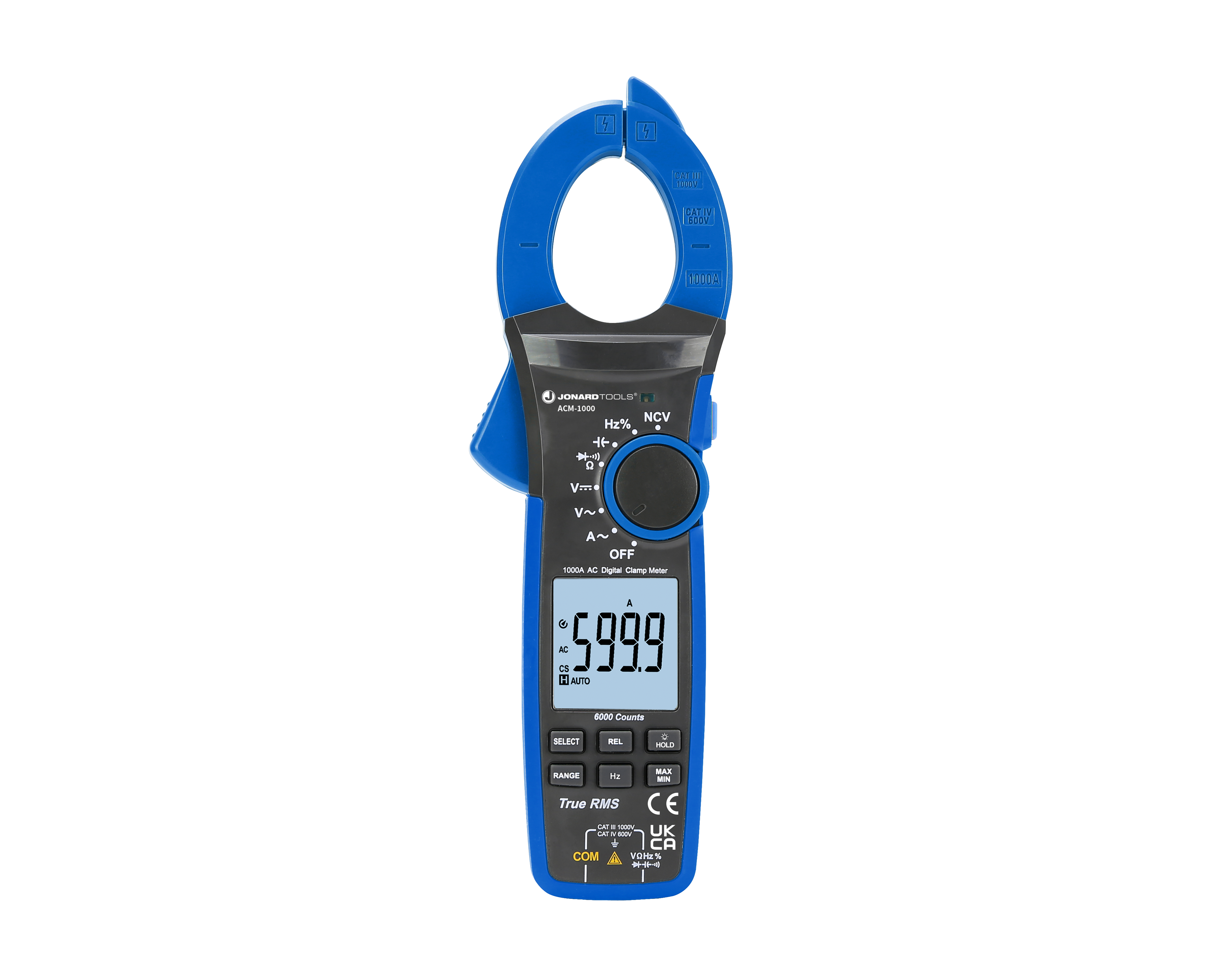

1000A Digital Clamp Meter
PRODUCT FEATURES
Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy. This product features the following:
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- 45MM clamp opening for a wide range of applications
- Unique design with grooved housing for superior grip
- Non-contact voltage tester integrated into the clamp
- Includes (3) AAA batteries required for operation
Specifications
| AC Current | 1000A |
|---|---|
| AC voltage | 1000V |
| Resistance | 40MΩ |
| Capacitance | 40mF |
| Temperature | -C40-C1000/-F40-F1832 |
| Jaw Opening | 45mm |
| Overvoltage Category | CAT IV 600V, CAT III 1000V |
| Dimensions | 12.25 in x 5.55 in x 2.48 in (31.12 cm x 14.08 cm x 6.29 cm) |
| Weight | 1.7 lb (773.616 g) |
| UPC # | 00810053359518 |
